| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P9-111222 |
| Series: | P9 |
| Cap Color: | Black |
| IP Rating: | IP6K4S |
| Case Color: | Black |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Flush Dome) |
| Actuator Shape: | Round |
| Current Rating: | 3 A | 5 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .101 in |
| Contact Plating: | Gold |
| Switch Function: | OFF-ON |
| Housing Material: | Thermoplastic (TP) |
| Type: | Sealed |
| Termination Type: | Solder |
| Actuator Material: | Thermoplastic |
| Durability Rating (Cycles): | 25,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| Contact Material: | Brass |
| SKU: | OTTP9-111222 |
P9-111222
Specifications
Detailed Description

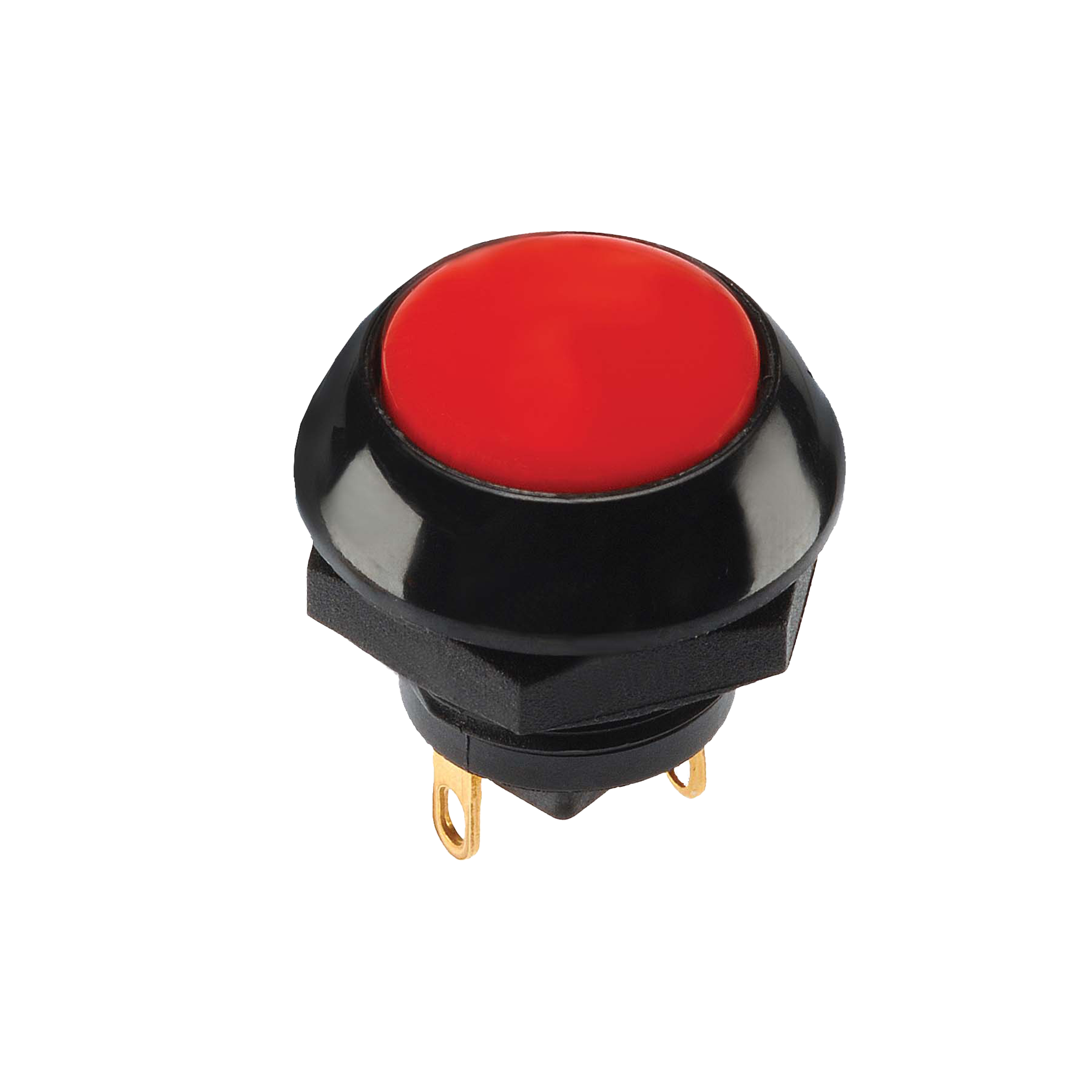

Introducing the P9 Series Sealed Dome Pushbutton Switch, SKU P9-111222. Designed for reliability in demanding environments, this black switch features an IP6K4S rating, ensuring protection against dust and water ingress. The flush dome button actuator, made of durable thermoplastic, offers a comfortable tactile response. With a contact plating of gold and a SPST-NO configuration, it guarantees efficient and corrosion-resistant performance. Ideal for panel mounting, this switch has a current rating of 3A/5A at 115VAC and 28VDC. Operating smoothly in temperatures ranging from -40°C to 85°C, it is suitable for various applications. Boasting a 25,000-cycle durability rating, the P9 Series Switch is a dependable choice for industrial and commercial use.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
