P9-113221

OTTP9_113221
Heilind Number:OTTP9-113221
Manufacturer:OTTO Controls
Manufacturer Number:P9-113221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

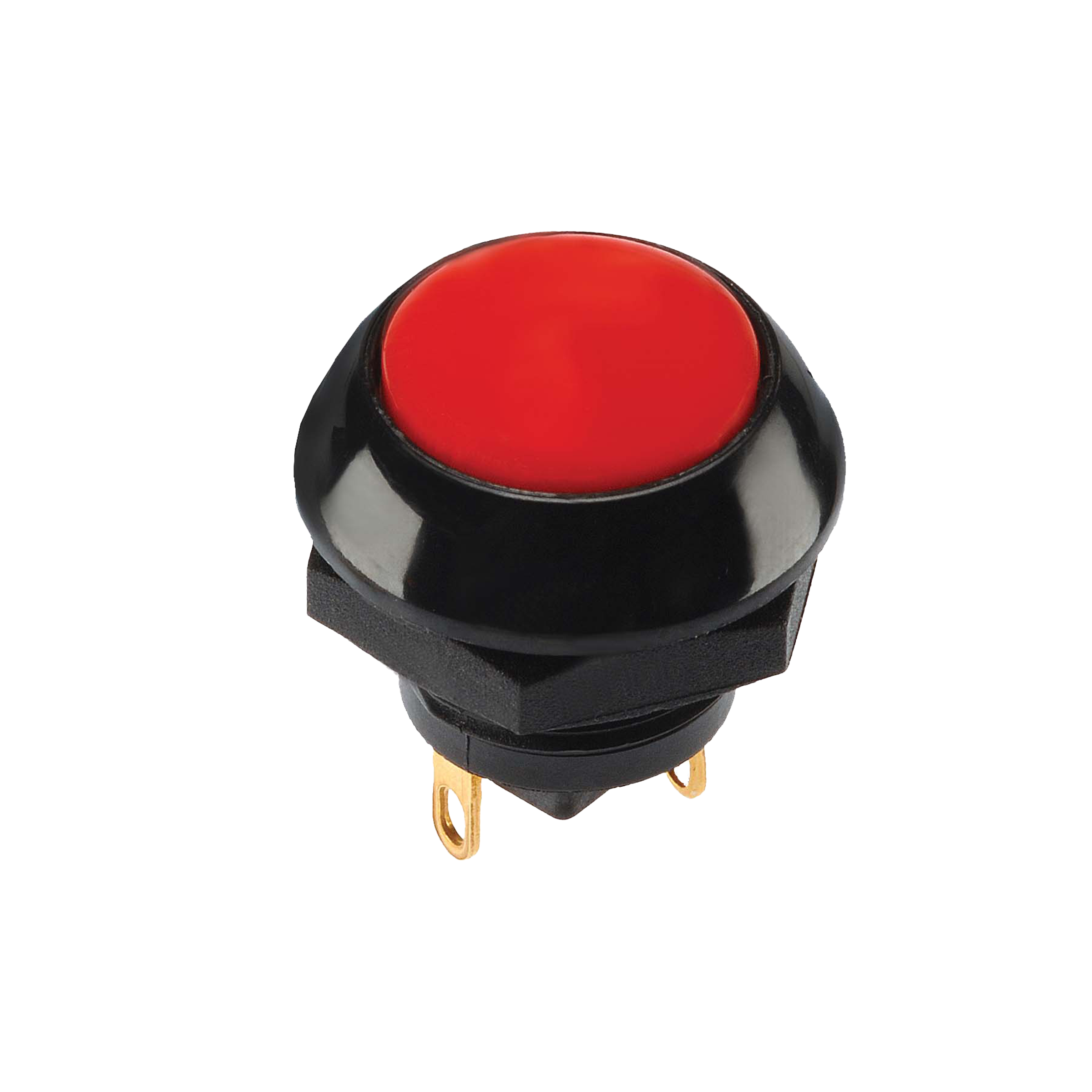

Sealed Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P9-113221
Series:P9
Cap Color:Red
IP Rating:IP6K4S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flush Dome)
Actuator Shape:Round
Current Rating:3 A | 5 A
Mounting Style:Panel Mount
Actuator Length:.101 in
Contact Plating:Gold
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Thermoplastic (TP)
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP9-113221

Detailed Description

Introducing the P9 Series Sealed Dome Pushbutton Switch, SKU P9-113221, designed for reliability in demanding environments. This high-performance switch features a red flush dome button actuator with a round shape, ensuring easy operation. With an IP6K4S rating, it offers excellent protection against dust and water ingress. The durable thermoplastic housing and gold-plated brass contacts guarantee longevity, with a durability rating of 25,000 cycles. Suitable for panel mounting, this switch has a current rating of 3A/5A and a contact configuration of SPDT, accommodating various applications. Operating efficiently in temperatures ranging from -40°C to 85°C, and with voltage ratings of 115VAC and 28VDC, it is ideal for industrial and automotive use. Trust in the P9113221 for seamless performance in critical control systems.
