P9-131391

OTTP9_131391
Heilind Number:OTTP9-131391
Manufacturer:OTTO Controls
Manufacturer Number:P9-131391
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

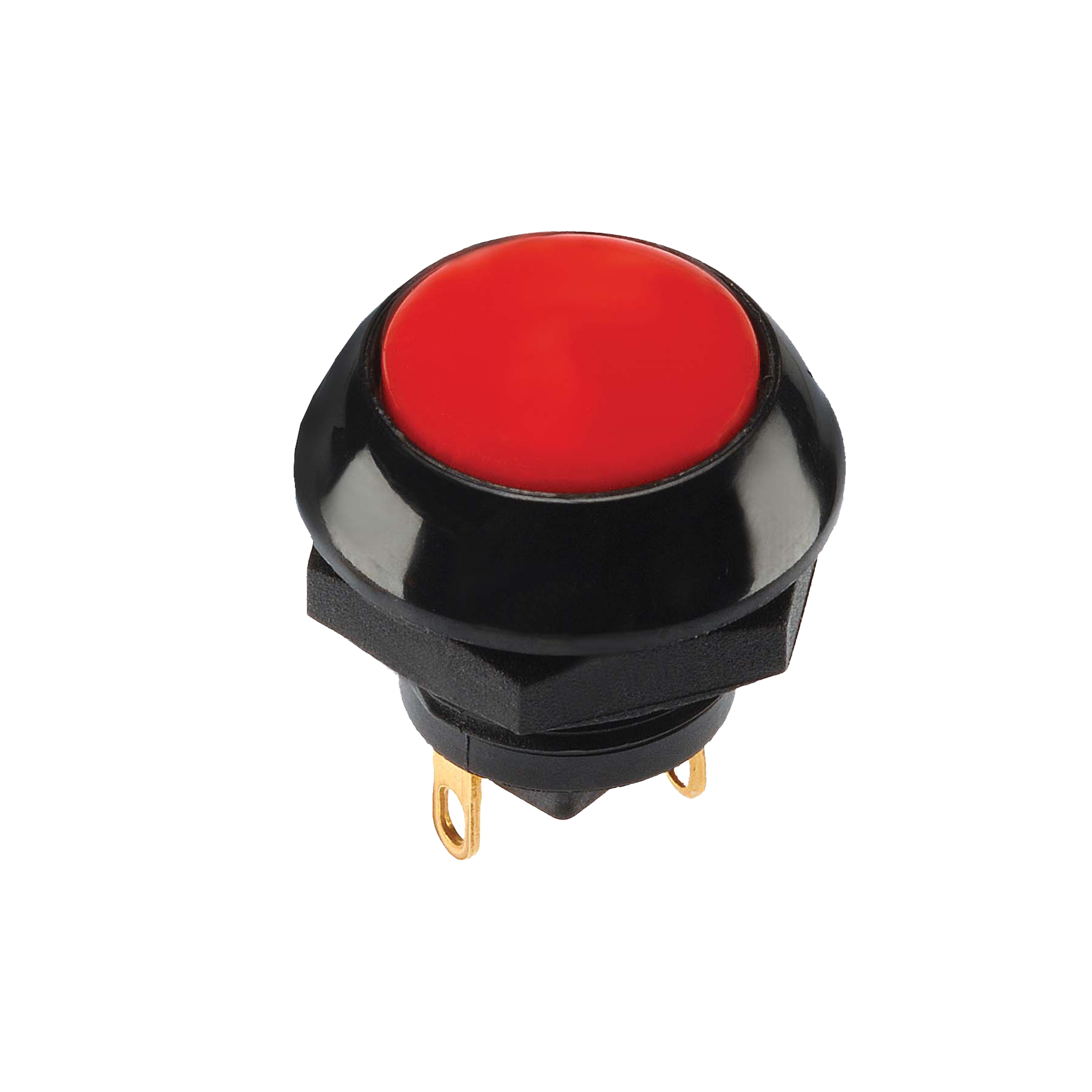

Sealed Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P9-131391
Series:P9
Cap Color:Red
IP Rating:IP6K4S
Case Color:White
Illumination:Not Illuminated
Actuator Type:Button (Flush Dome)
Actuator Shape:Round
Current Rating:3 A | 5 A
Mounting Style:Panel Mount
Actuator Length:.101 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Thermoplastic (TP)
Type:Sealed
Termination Type:Quick Connect
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP9-131391

Detailed Description

Introducing the P9-131391, a high-performance sealed dome pushbutton switch designed for reliable operation in demanding environments. Featuring a durable thermoplastic housing in white with a striking red flush dome button, this switch not only offers a sleek design but also meets IP6K4S standards for dust and water resistance. The button, made of thermoplastic, ensures comfortable actuation with a round shape and flush mount. Gold-plated brass contacts guarantee excellent conductivity, while the SPST-NO contact configuration and 3A/5A current ratings make it suitable for various applications. With a durability rating of 25,000 cycles, this switch is built to last. Whether panel-mounted in industrial machinery or used in automotive applications, its wide temperature range from -40°C to 85°C and voltage ratings of 115VAC and 28VDC ensure reliable performance. Upgrade to the P9-131391 for a premium pushbutton switch solution.
