P9-331123

OTTP9_331123
Heilind Number:OTTP9-331123
Manufacturer:OTTO Controls
Manufacturer Number:P9-331123
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

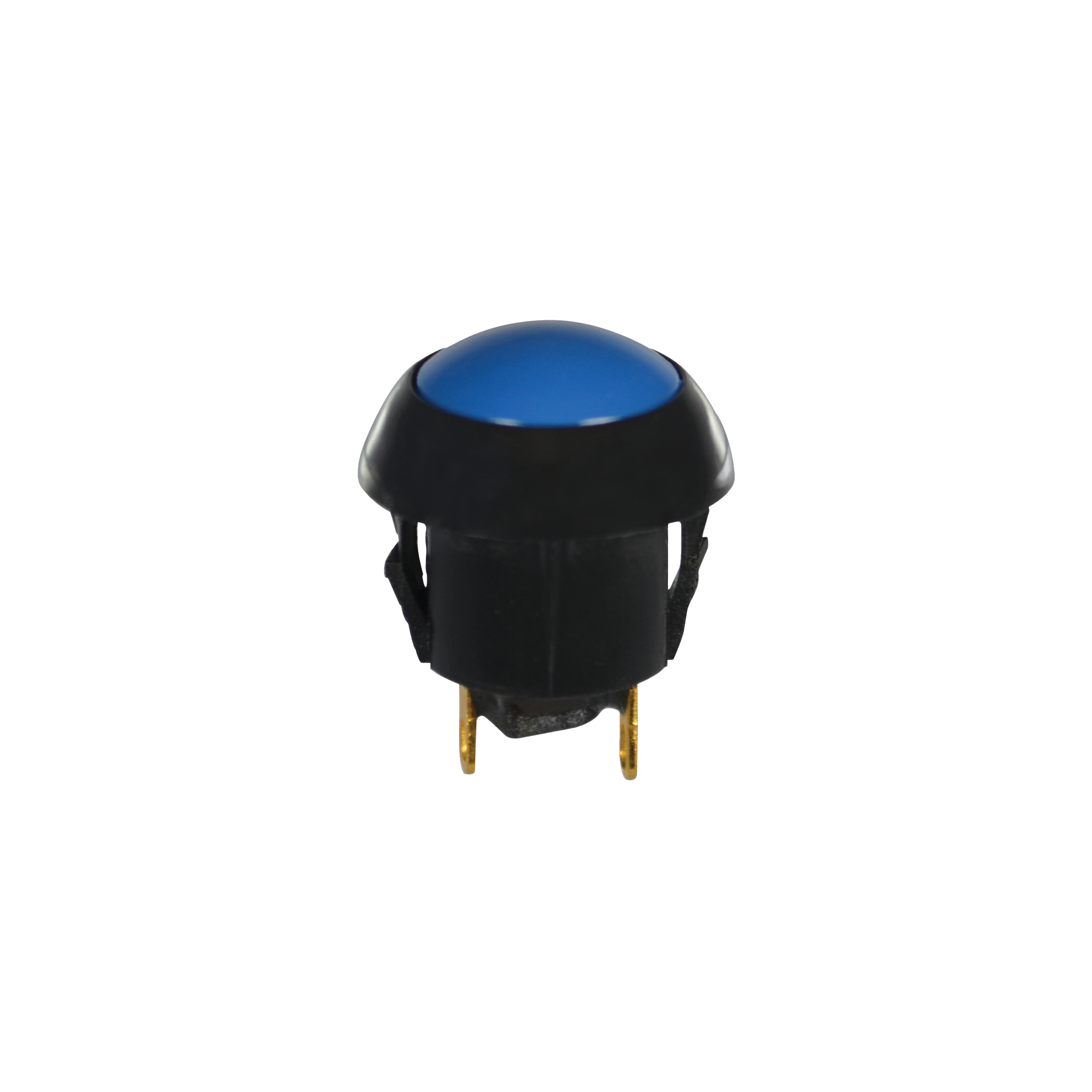

Sealed Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P9-331123
Series:P9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:Orange
Actuator Length:.201 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:3 A | 5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP9-331123

Detailed Description

Introducing the P9-331123, a high-performance Sealed Dome Pushbutton Switch designed for durability and reliability in demanding environments. Featuring a sleek black case with a vibrant orange cap, this switch combines style with functionality. With an IP6K4S rating, it guarantees protection against dust and water ingress, making it ideal for industrial applications. The Button (Flush Dome) actuator, crafted from durable thermoplastic, ensures a comfortable and responsive user experience. Gold-plated brass contacts offer excellent conductivity, while a contact configuration of SPST-NO provides reliable On-Off functionality. Operating at temperatures ranging from -40 °C to 85 °C and with a voltage rating of 115 VAC/28 VDC, it is suitable for a wide range of uses. Panel mount installation and quick connect termination make setup a breeze. With a lifespan of 25,000 cycles, this switch is built to last. Trust in the P9 series for quality and performance.
