P9-411126

OTTP9_411126
Heilind Number:OTTP9-411126
Manufacturer:OTTO Controls
Manufacturer Number:P9-411126
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

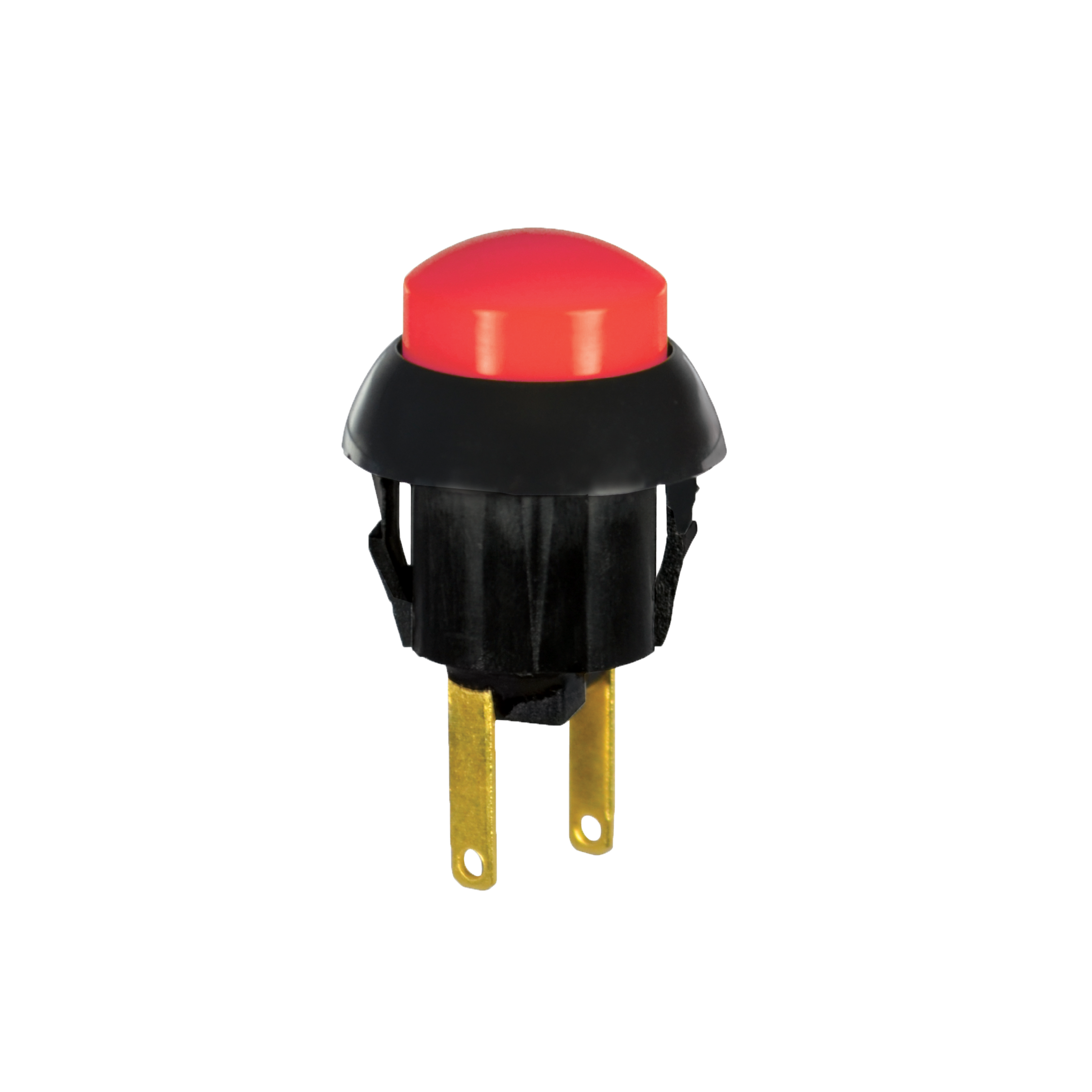

Sealed Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P9-411126
Series:P9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Blue
Actuator Length:.201 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:3 A | 5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP9-411126

Detailed Description

Introducing the P9 Series Sealed Dome Pushbutton Switch, designed for reliability in demanding environments. With a sleek black case and a durable blue cap, this switch not only looks professional but also offers IP6K4S rated protection against dust and water ingress. The button actuator, featuring a raised dome design, provides a tactile feedback, making it easy to operate. The gold-plated brass contacts ensure high conductivity, while the thermoplastic housing guarantees durability. Ideal for panel mounting, this switch has a current rating of 3A (5A peak) and is suitable for both AC (115V) and DC (28V) applications. Its SPST-NO contact configuration and Off-(On) switch function make it versatile for various control systems. Whether in industrial machinery or automotive applications, this RoHS-compliant switch is a reliable choice, offering a long lifespan of 25,000 cycles and operating smoothly in temperatures ranging from -40°C to 85°C. Upgrade your control system with the P9 Series Sealed Dome Pushbutton Switch.
