P9-412122

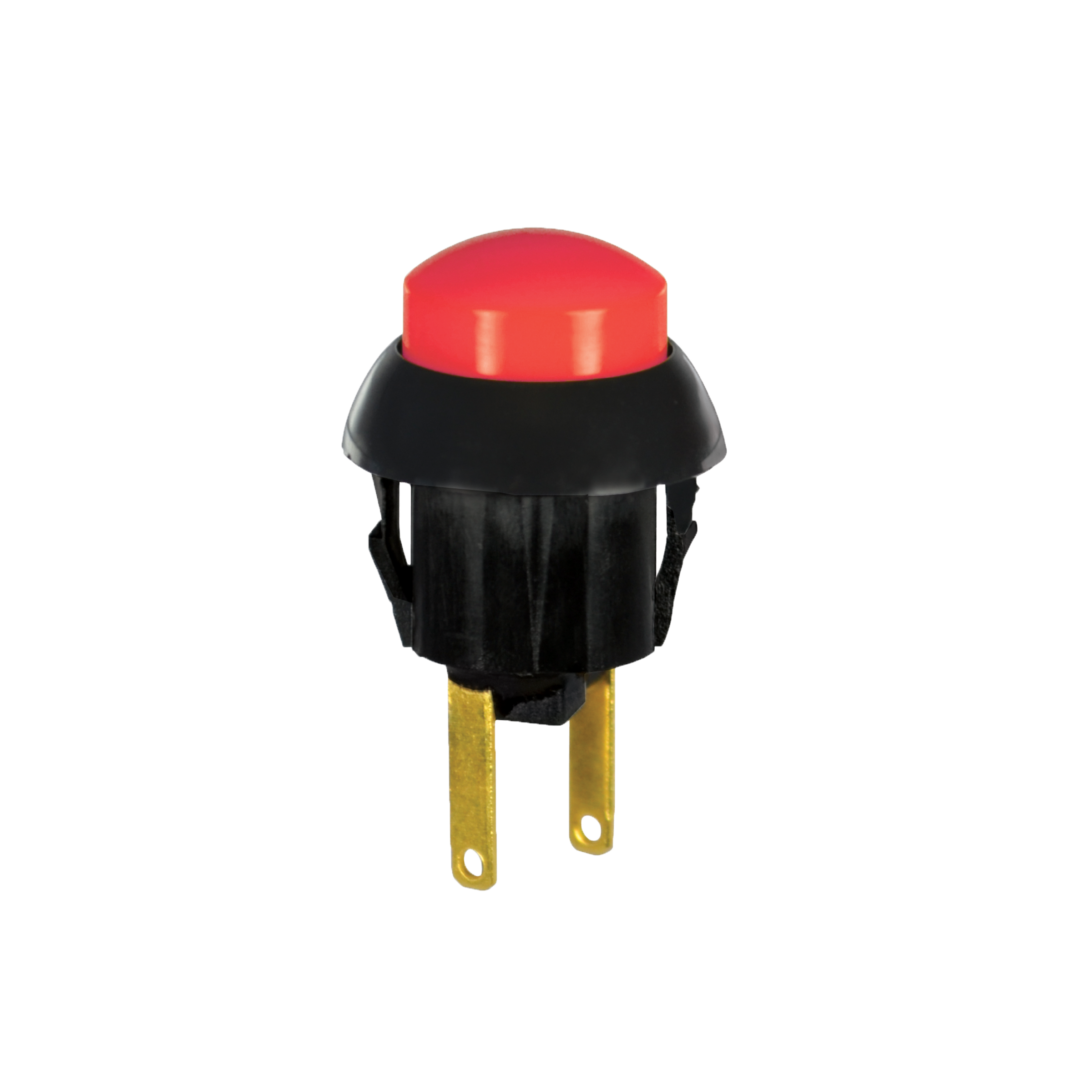

OTTP9_412122
Heilind Number:OTTP9-412122
Manufacturer:OTTO Controls
Manufacturer Number:P9-412122
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Sealed Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P9-412122
Series:P9
Cap Color:Black
IP Rating:IP6K4S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Raised Dome)
Actuator Shape:Round
Current Rating:3 A | 5 A
Mounting Style:Panel Mount
Actuator Length:.201 in
Contact Plating:Gold
Switch Function:ON-OFF
Contact Material:Brass
Housing Material:Thermoplastic (TP)
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NC
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP9-412122

Detailed Description

The P9-412122 Push Button Switch is a durable and reliable component designed for demanding environments. With its black thermoplastic housing and IP6K4S sealing, it ensures protection against dust and water ingress, making it ideal for use in industrial applications. Featuring a raised dome button actuator and gold-plated brass contacts, it offers a tactile and responsive interface with excellent conductivity. The SPST-NC contact configuration allows for a straightforward On-(Off) function, while the 3A/5A current rating and 115VAC/28VDC voltage ratings ensure compatibility with a wide range of systems. Whether for panel mounting or solder termination, this switch guarantees easy installation and secure connectivity. With a long-lasting durability rating of 25,000 cycles and an operating temperature range from -40°C to 85°C, the P9-412122 is a high-performance solution for critical control applications.
