P9-511126W

OTTP9_511126W
Heilind Number:OTTP9-511126W
Manufacturer:OTTO Controls
Manufacturer Number:P9-511126W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

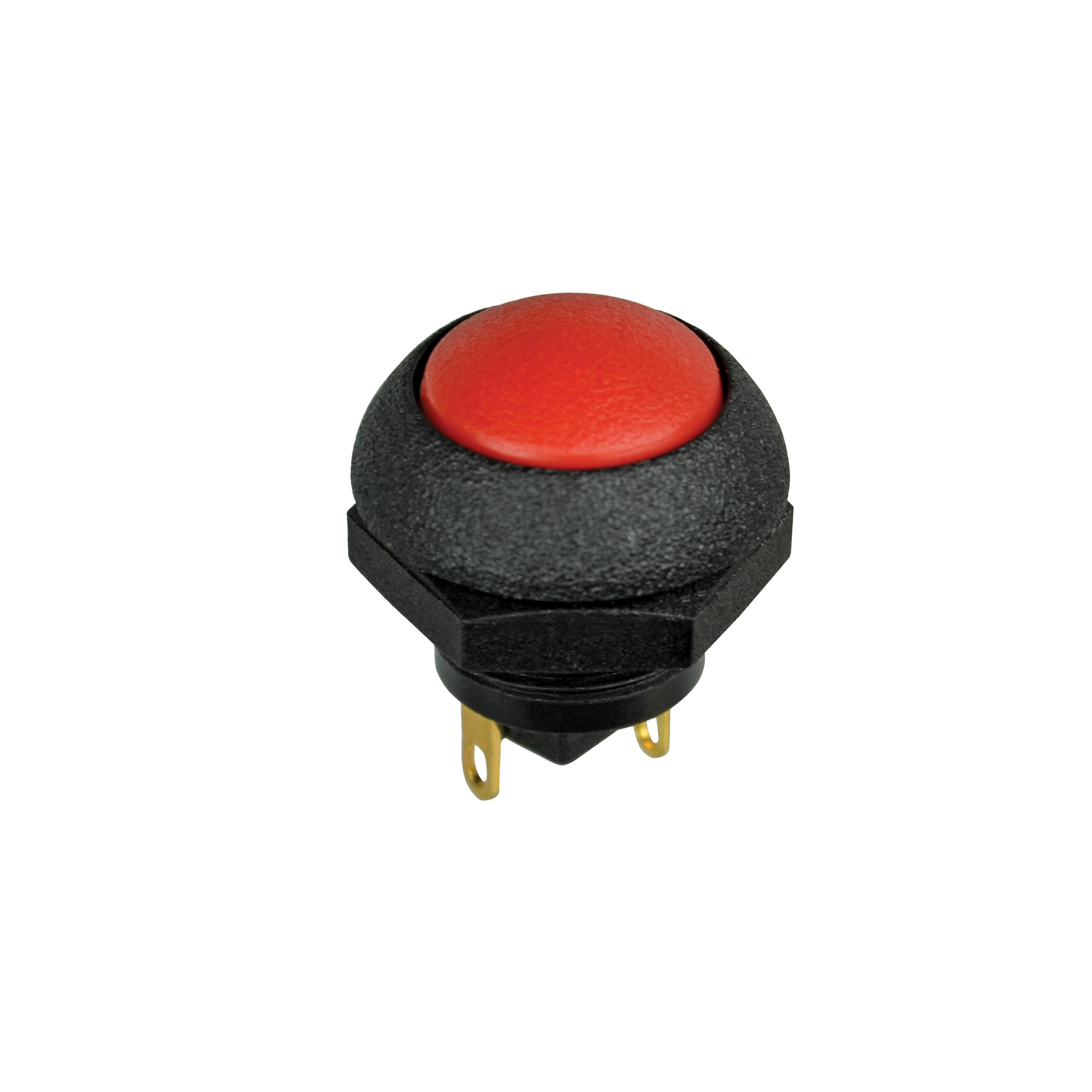

Sealed Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P9-511126W
Series:P9
Cap Color:Blue
IP Rating:IP6K8S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flush Dome)
Actuator Shape:Round
Current Rating:3 A | 5 A
Mounting Style:Panel Mount
Actuator Length:.101 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Thermoplastic (TP)
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP9-511126W

Detailed Description

The P9-511126W is a rugged and reliable Sealed Dome Pushbutton Switch designed for demanding environments. With an impressive IP6K8S rating, this switch ensures protection against dust and water ingress, making it ideal for industrial and outdoor applications. The button features a durable Thermoplastic actuator with a Flush Dome shape, providing a comfortable and responsive user experience. The SPST-NO contact configuration guarantees reliable operation, while the gold-plated brass contacts offer excellent conductivity. Rated for 25,000 cycles of durability, this switch is built to last. With a maximum operating temperature of 85°C and a minimum of -40°C, it can perform in a wide range of conditions. Whether you need a reliable control solution for machinery or outdoor equipment, the P9-511126W is the perfect choice.
