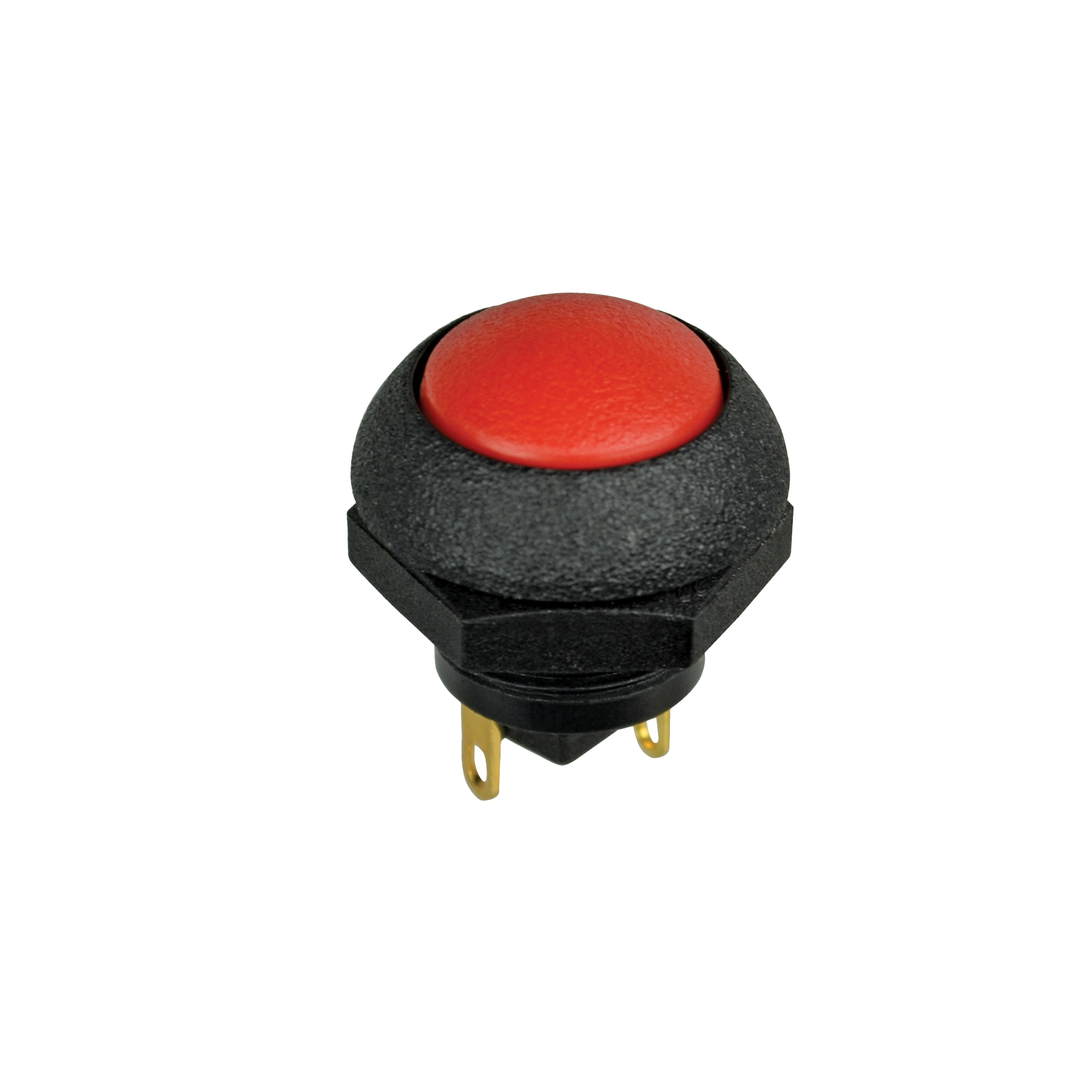

P9-513122W

OTTP9_513122W
Heilind Number:OTTP9-513122W
Manufacturer:OTTO Controls
Manufacturer Number:P9-513122W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Sealed Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P9-513122W
Series:P9
Cap Color:Black
IP Rating:IP6K8S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flush Dome)
Actuator Shape:Round
Current Rating:3 A | 5 A
Mounting Style:Panel Mount
Actuator Length:.101 in
Contact Plating:Gold
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Thermoplastic (TP)
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP9-513122W

Detailed Description

Introducing the P9 Series Sealed Dome Pushbutton Switch ( P9-513122W), a high-performance component designed for reliability in demanding environments. Featuring a sleek black cap and case, this switch is both visually appealing and durable, with an IP6K8S rating for water and dust resistance. The button, with its flush dome actuator, offers a smooth and responsive touch, while the gold-plated brass contacts ensure optimal conductivity. Ideal for panel mounting, this switch is perfect for applications requiring a current rating of 3A or 5A. With a contact configuration of SPDT and a voltage rating of 115VAC/28VDC, it offers versatility for various electrical systems. The thermoplastic housing and actuator, along with a wide operating temperature range (-40°C to 85°C), guarantee performance even in harsh conditions. With a durability rating of 25,000 cycles, this switch is built to last. Upgrade your control systems with the P9 Series Sealed Dome Pushbutton Switch, the perfect blend of functionality and durability.
