P9-611228

OTTP9_611228
Heilind Number:OTTP9-611228
Manufacturer:OTTO Controls
Manufacturer Number:P9-611228
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

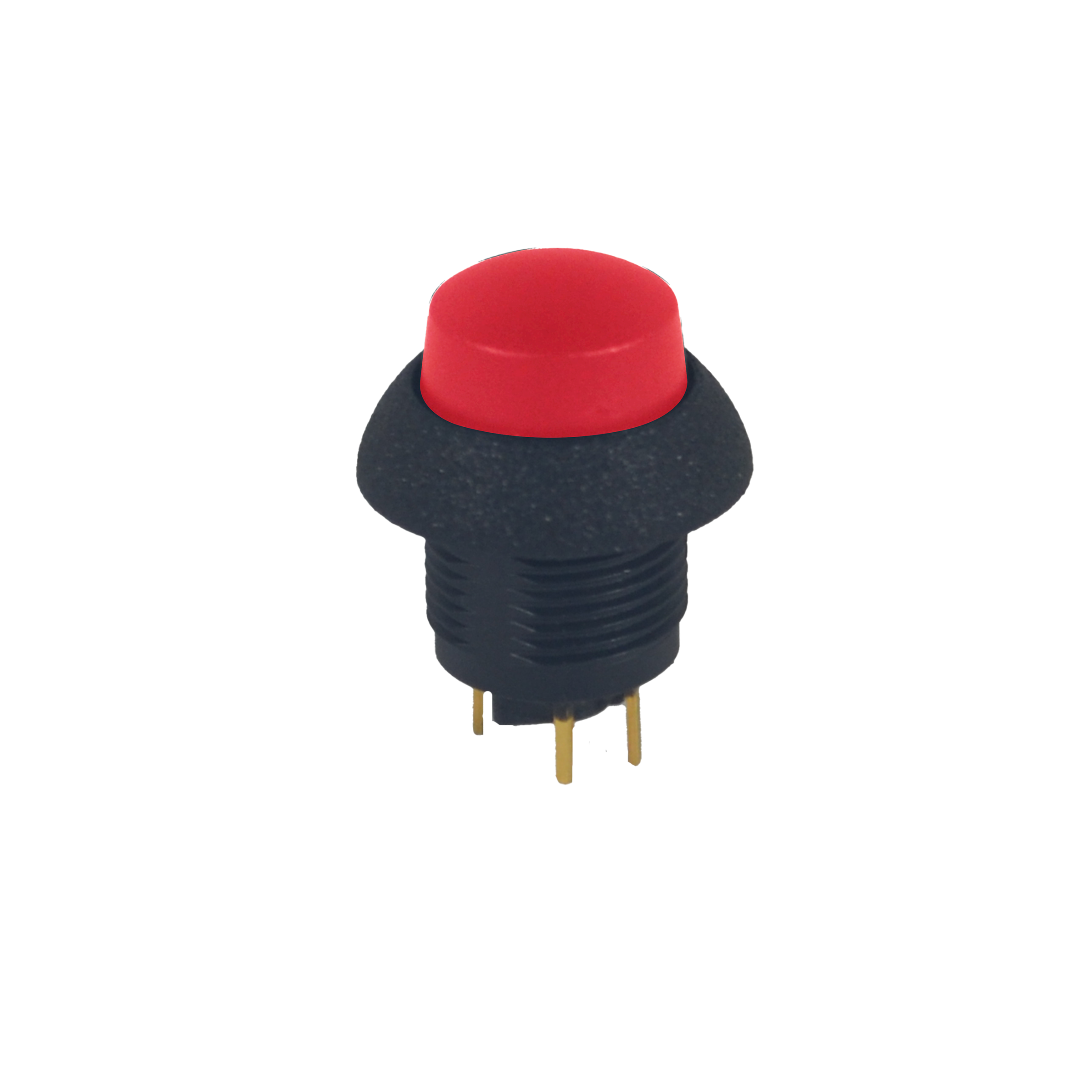

Sealed Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P9-611228
Series:P9
Cap Color:Gray
IP Rating:IP6K4S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Raised Dome)
Actuator Shape:Round
Current Rating:3 A | 5 A
Mounting Style:Panel Mount
Actuator Length:.201 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Thermoplastic (TP)
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP9-611228

Detailed Description

The P9-611228 Sealed Dome Pushbutton Switch is a reliable and durable electronic component designed for high-performance applications. With an IP6K4S rating, this switch ensures protection against dust and water ingress, making it ideal for use in challenging environments. The gray button with a raised dome actuator offers a tactile feedback, while the gold-plated brass contacts guarantee efficient and corrosion-resistant operation. Featuring a panel mount installation and solder termination, it provides secure connectivity. Its SPST-NO contact configuration allows for a single-pole, normally open circuit, suitable for various electronic systems. Operating at temperatures ranging from -40°C to 85°C and accommodating voltages up to 115VAC and 28VDC, this switch is versatile and dependable. With a lifespan of 25,000 cycles, it offers long-term performance. The P9 series pushbutton switch is a critical component in the Push Button Switches category, ensuring seamless functionality in industrial and commercial settings.
