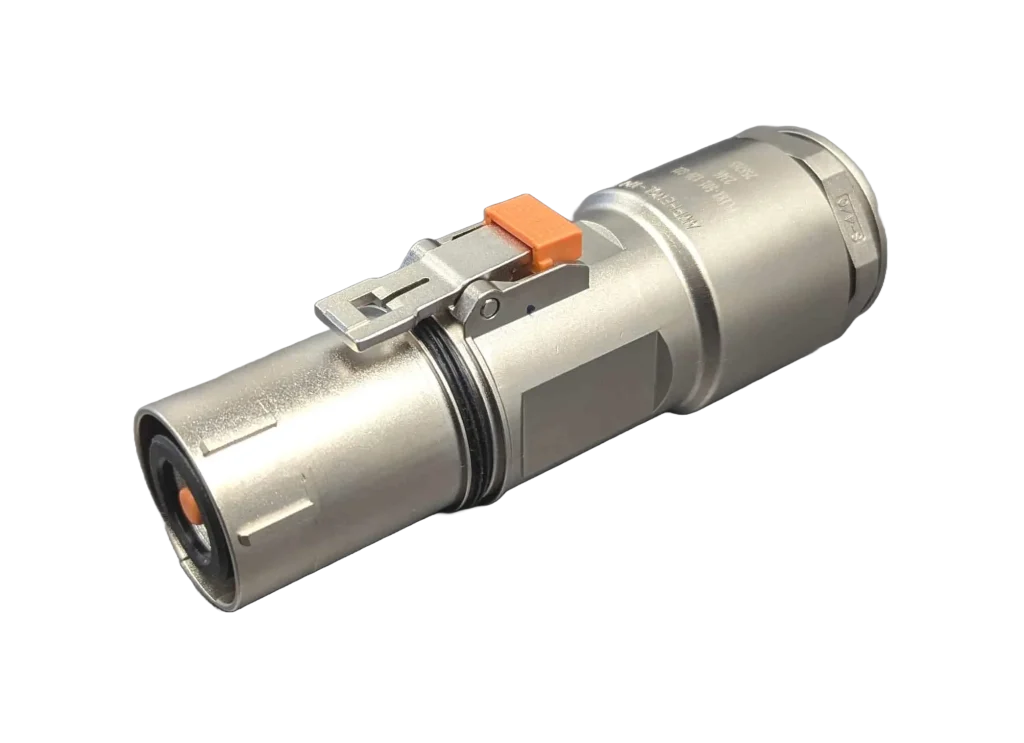

PowerLok G1
PowerLok G1 is a low cost, compact, metal-shell interconnect solution utilizing RADSOK contact technology for EV and Hybrid transportation applications. Up to 1000V ranging from 5A-500A (Continuous @ 80°C) with HVIL, 360° shielding, environmental sealing, keying, straight and right-angle configurations, and up to 4 power circuits. Accommodates cable sizes from 2.5mm2 to 150mm2 with and without shielding. Available as assembled and overmolded versions. PowerLok series connectors are engineered for diverse applications given its wide power range coverage, including electric powertrains, batteries, PDU’s and motors of automotive, trucks, bus, agricultural and construction machines, off-road vehicles and energy storage.
Features
Specifications
Features
- NEW CONFIGS: 500 Series Assembled (PL18 & PL28, 70/95/120mm2 -5 Versions)
- Metal Shell (Zinc Diecast)
- 360° Shielding

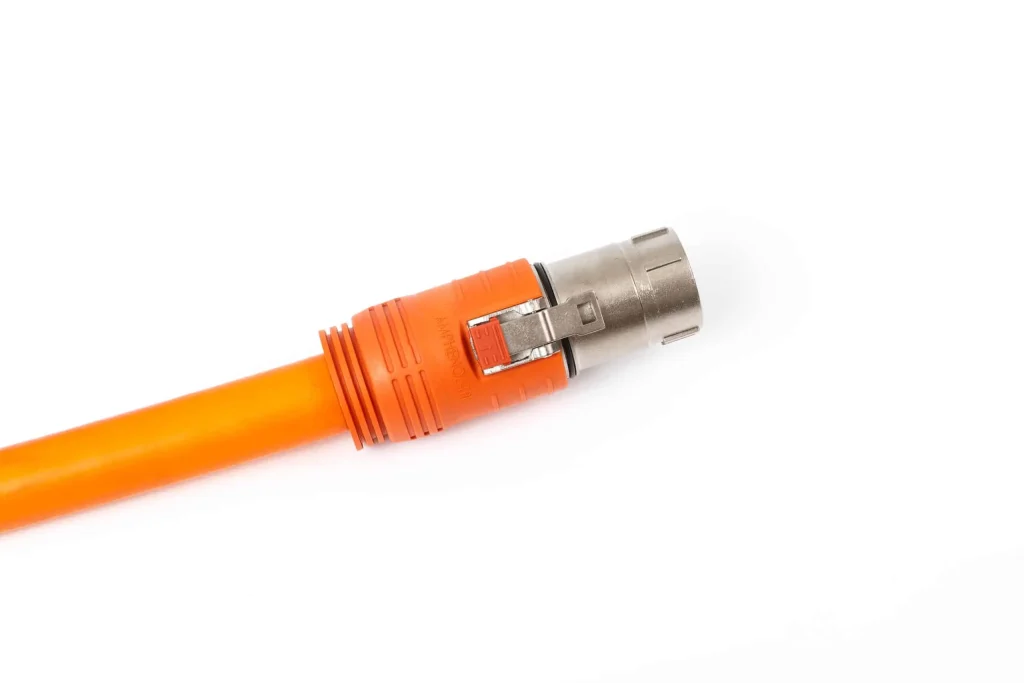

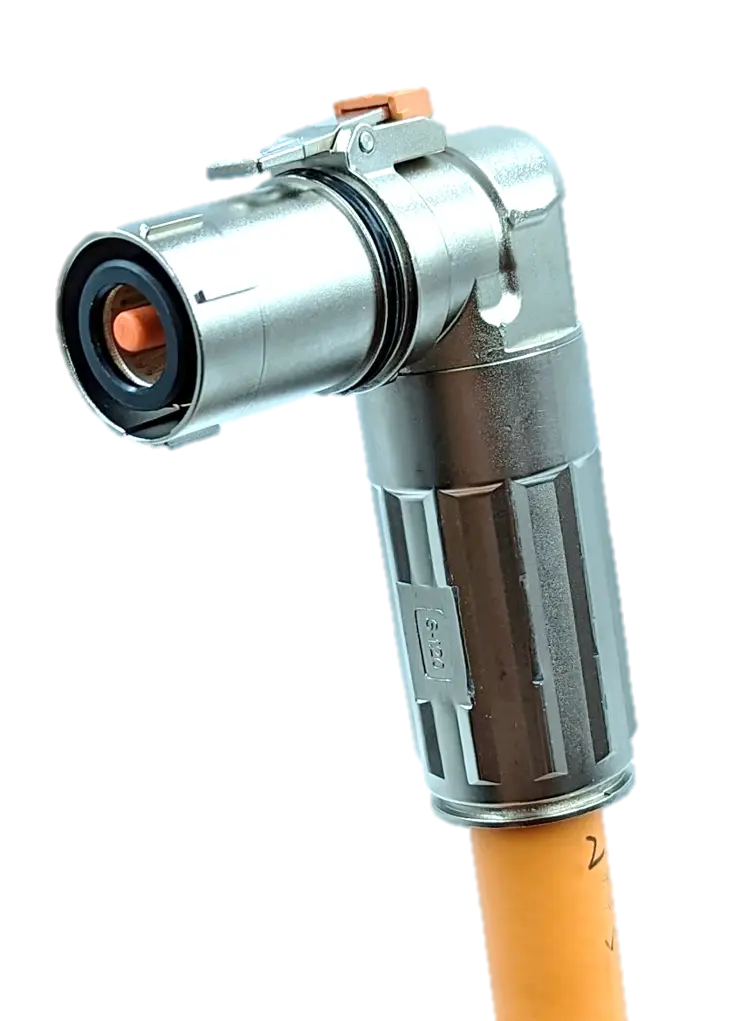

- 1POS, 2POS, 3POS and 4 POS Positions Available, Straight and Right Angle
- 40 Series: 2+4, 3, and 4 pos | 60 Series: 2 position | 120 Series: 1, 2 pos
- 300 Series: 1, 2, 3 pos | 500 Series: 1 pos
- High Voltage Inter Lock (HVIL) & Multiple Keys: 1POS (X,Y,U,V,W,T keys) & 2POS & 3POS (X,Y keys)
- Busbar, Threaded Stud, Pin, Punch Nut and Custom Lug options for Receptacles
- RADSOK contact technology
- RoHS/REACH Compliant
Specifications
- Mating Cycle: 100 Min
- DC Current Rating: 25A-500A Nominal (refer to derating curve)
- Voltage Rating: 1000VDC
- Environmental (mated): IP67, IP6K9K (NEW for 300 Series, 200 and 500 series avail. NOW)
- Environmental (unmated): IP2X mated
- Insulation Resistance: 500MΩ min
- IP Rating: IP67 (mated), IP2X (unmated)
- Salt Spray: 48h (contact for custom options up to 500/1000 hours)
- Temperature range: -40℃ to +125℃
