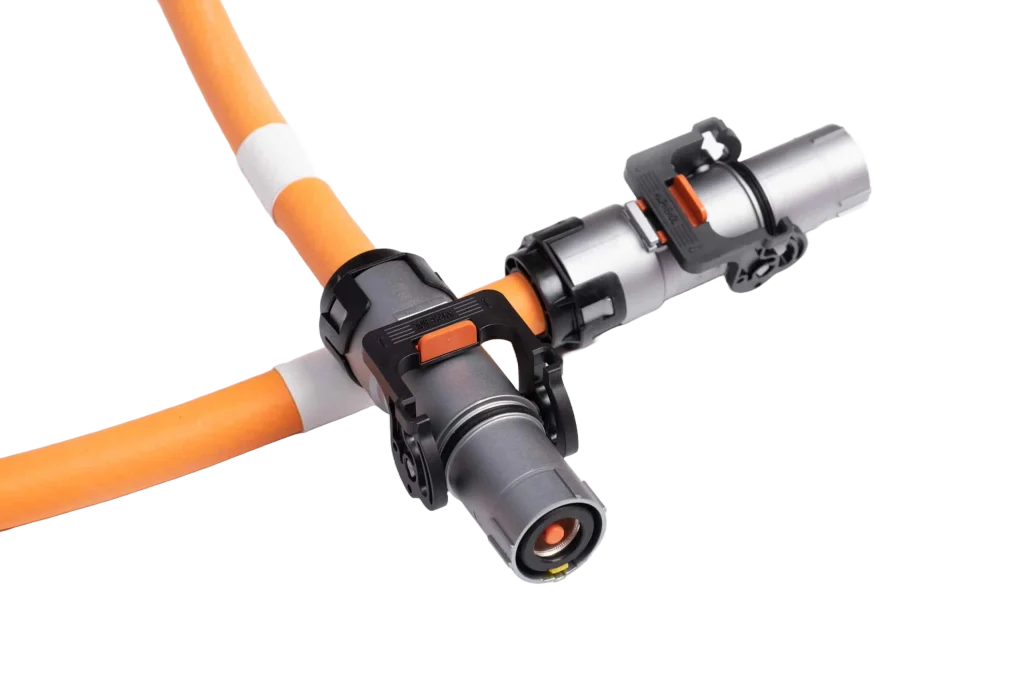

PowerLok G2
PowerLok G2 is a high performance, compact, aluminum alloy interconnect solution utilizing RADSOK® contact technology for EV and Hybrid transportation applications. G2 provides electrical ratings up to 1500VDC and 500A (Continuous @ 80°C Ambient) with IP67/6K9K sealing, 360° shielding, 500 hr salt spray, multiple keying options, straight and right-angle configurations, and up to 3 positions. G2 is available as field assembled connectors which accommodate shielding cable sizes from 35mm² to 120mm² (300/500 Series) and 2.5mm² to 10mm² (60 Series). PowerLok G2 connectors are engineered for a diverse set of applications including electric power distribution (batteries, inverter, PDU, and motors) for automotive, truck, bus, agricultural, construction, and off-road vehicles.
- NEW CONFIGS: 35mm2 & 95mm2 300 Series (1, 2, and 3 pole, straight and right angle)
- NEW RATING: 1500VDC All Configs | 300 and 500 Series
- Aluminum Shell, Gray Zinc Plating, 360° Shielding

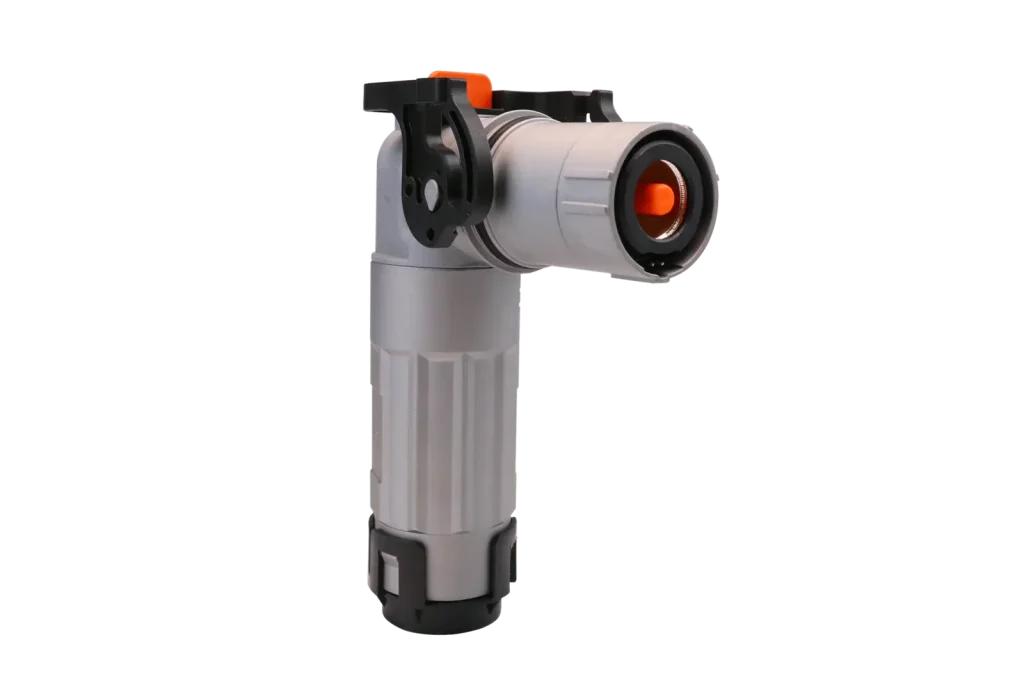

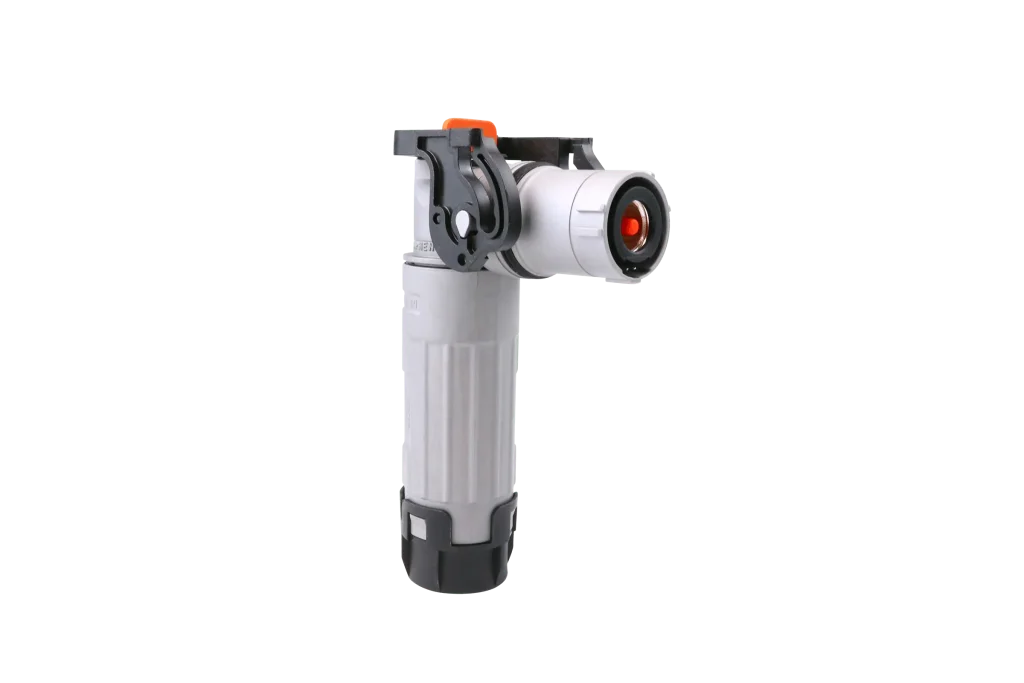

- 1POS, 2POS, and 3POS Positions Available, Straight and Right Angle

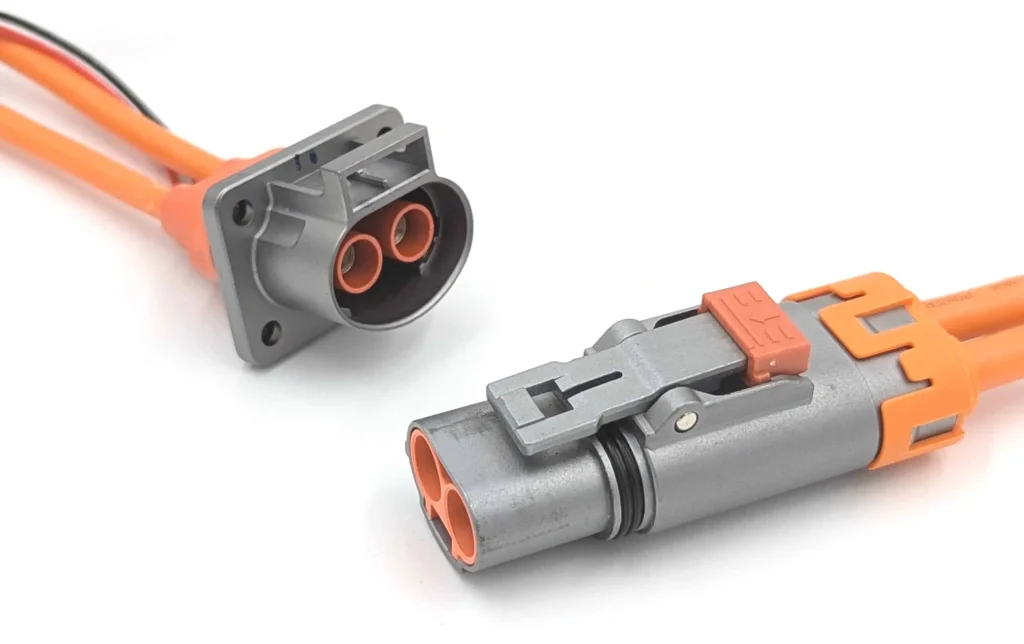

- 60 Series: 2 pos | 300 Series: 1, 2, 3 pos | 500 Series: 1 pos
- High Voltage Inter Lock (HVIL) & Multiple Keys: 1POS & 2 POS (X,Y,U,V,W,T keys) & 3POS (X,Y keys)
- Busbar, Threaded Stud, Pin, Punch Nut, and Custom Lug options for Receptacles
- RADSOK contact technology
- RoHS/Reach compliant
- Updated design, improved HVIL, Vibe, and Shielding performance
- Mating Cycle: 100 Min
- Current Rating: 25A-500A Nominal (refer to derating curves)
- Operating Voltage: 1500VDC (300/500 Series), 1000VDC (60 Series)
- Environmental: IP67 & IP6K9K (IP2X when mated)
- Insulation Resistance: 500MΩ min
- Temperature Range: -40℃ to +125℃ (w/ 140℃ RTI Insulators)
- Flammability: UL94 V-0
- Salt Spray: 500h (contact for custom options)
