Johnson Ganged SMPM Edge Mount Connector

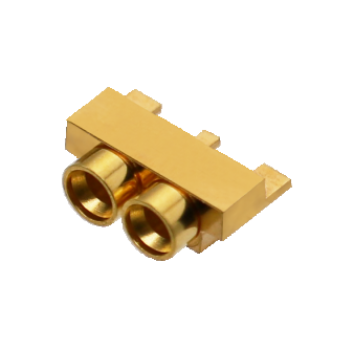

Cinch Connectivity Solutions’ Johnson SMPM ganged edge mount connectors offer 2- and 4-port solutions for edge mount connectors supporting SMPM up to 65 GHz. The SMPM series feature a mating force of 4.5lbs for engagement and 6.5lbs for disengagement, DC to 40GHz frequency range, and 50Ω impedance rating. These edge mount connectors are ideal for networking routers and switches, test and measurement rack systems, instrumentation test fixture equipment, and radar systems. Available in full detent and smooth bore PCB mount solutions.
Benefits
Applications
Benefits
- VSWR
- 1.45 max to 65 GHz
- Max frequency: 65 GHz
- 50 ohm impedance
- Brass/beryllium copper
- Connectors may mate board-to-board using bullet adapters or with individual cabled connectors
- Mating force spec 4.5lbs engagement/ 6.5lbs disengagement per SMPM full detent specs, conforms to MIL-STD-348A SMPM specs
Applications
- Networking router and switches
- Test and measurement rack system
- Instrumentation test fixture equipment
- Semiconductor ATE test boards
- Wireless infrastructure antenna systems
- Radar systems
