CONEC Hybrid Connectors
… soon to be certified in accordance with IEC standard 61076-2-118

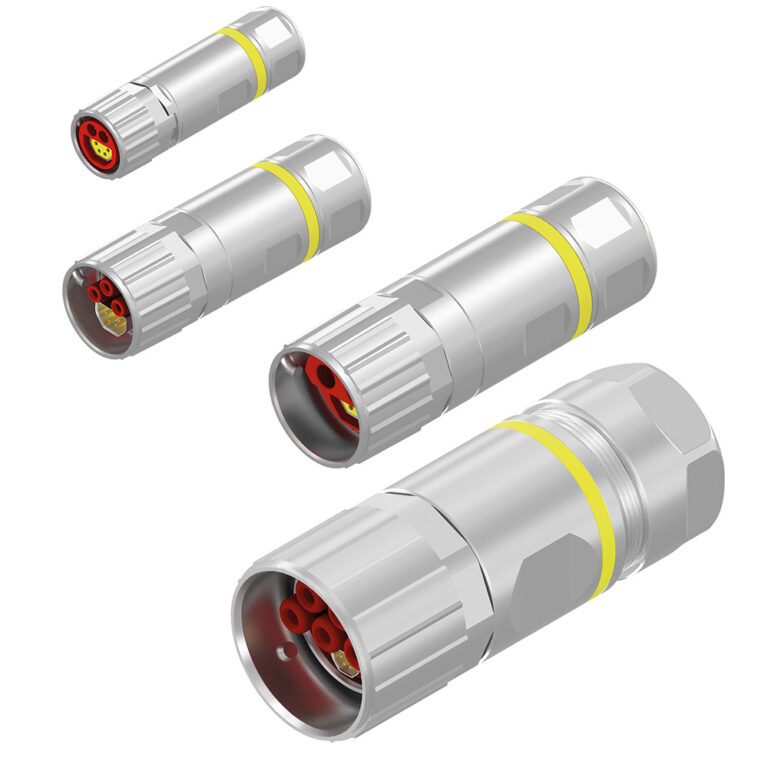

Available in the variants Hybrid overmolded, Hybrid field attachable, Hybrid receptacle
For conventional wiring of motors, servo-drives or linear units/drives, time and costs for cabling, maintenance and diagnostics are very high. Separate cables from the switch cabinet are used for the power supply and control of every single motor. This procedure does not only require much space, but also causes high costs.

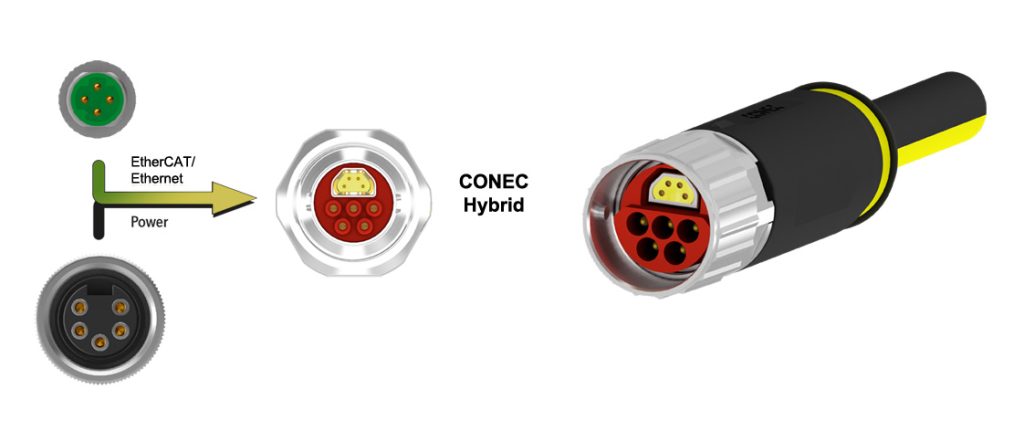

With the CONEC Hybrid connectors series, a compact hybrid connector system has been developed, combining power supply and data transmission in one single connector. This one-cable technique corresponds to modern connection and interface wiring technology.
Depending on the application, four sizes, B12, B17, B23 and B40 are available. While the number of pins and the permitted voltages vary depending on the size, the 360° shielded data core is always the same and designed for industrial ethernet Cat 5 with wire cross section AWG22. CONEC presents this hybrid connector system in the form of connectors with overmoulded cable, field attachable connectors as well as receptacles for device-side installation.
Learn more in these videos
Product group
Significantly reduced cabeling effort
CONEC Hybrid Connectors overmoulded
Hybrid overmoulded connectors are offered as single ended and connection cables in various standard lengths and are electrically tested with regard to transmission properties according to IEC 11801 Cat 5e. All four sizes (B12, B17, B23, B40) are equipped with a bayonet locking mechanismand thus guarantee a fast and secure connection.

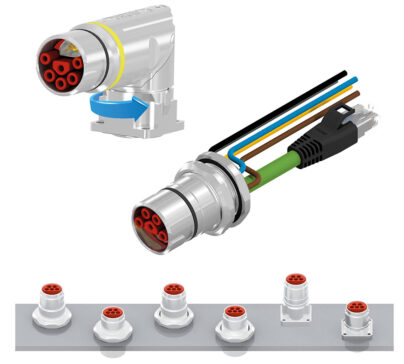

CONEC Hybrid Receptacles
CONEC Hybrid receptacles are available in sizes B12, B17, B23, B40 and in seven different designs:-
• Front panel mounting, short or long
• Rear panel mounting, short or long
• Square receptacles, short or long
• Receptacles, angled, rotatable
Quick and secure locking is ensured by the bayonet locking
- Space-saving by transmitting data and power via one single connector
- Modular system
- Reduced wiring
- Shorter assembly times
- Cost savings
- Fast and secure connection with bayonet locking
- Degree of protection IP67
- Improved diagnostic possibilities
- Compact and robust design
- Drive technology
- Mechanical engineering
- Robotics
- Assembly and production lines
- Renewable energy
