Sealed USB-C Connectivity for Industrial and Portable Electronics
Broad format coverage from 6-pin charge-only through 24-pin USB 3.2 Gen 2 options
GCT’s waterproof USB-C connector range provides a sealed connectivity solution for applications requiring environmental protection alongside modern power and data capability. With IP67/IP68 protection, Power Delivery support up to 240W, and options spanning charge-only through to USB 3.2 Gen 2.
This USB-C family includes horizontal and vertical orientations, mid-mount and top-mount options, and versions with either integrated LIM or separate gasket sealing. With 100% testing compliance and all products rated to 20,000 mating cycles as standard, the range provides a strong platform for supporting customers across industrial, portable, and electronic designs that may need extra protection.
- 100% tested for IP67/IP68 compliance
- Power Delivery versions up to 240W
- Rated to 20,000 mating cycles
- 6-pin charge-only options
- 16-pin versions for USB 2.0 applications
- 24-pin versions for USB 3.2 Gen 2 applications
- Horizontal and vertical orientations
- Mid-mount and top-mount formats
- Integrated LIM or separate gasket sealing options
- 3D models and PCB footprints available online
Portable electronics
- Audio equipment
- EPOS
- Alarm systems
- Security systems
- Consumer electronics
- Gaming controllers
GCT USB-C Videos
Playlist
2:26
1:20
Products
6-Pin – Power Only

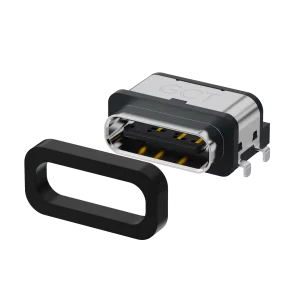

- USB4715: IP67, Horizontal mid-mount, separate gasket

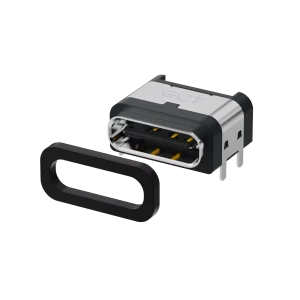

- USB4736: IP67, Horizontal surface-mount, separate gasket

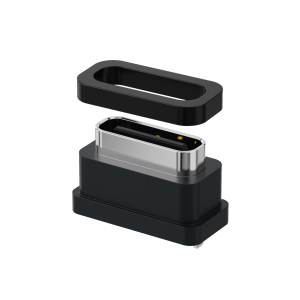

- USB4750: IP67, Vertical through-hole, separate gasket
16-Pin – USB 2.0

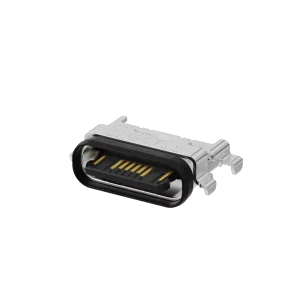

- USB4720: IP67, Horizontal surface-mount, integrated LIM gasket

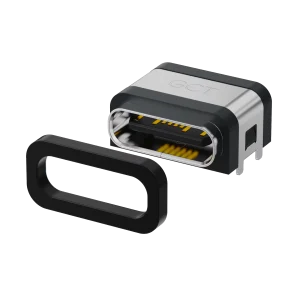

- USB4730: IP67, Horizontal surface-mount, separate gasket
24 Pin – USB 3.2

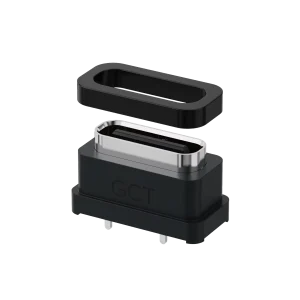

- USB4725: IP67, Vertical surface-mount, separate gasket

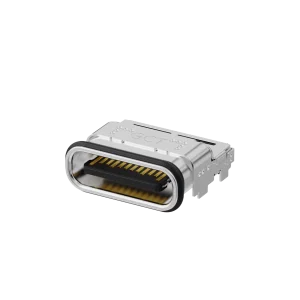

- USB4745: IP68, Horizontal surface-mount, integrated LIM gasket
