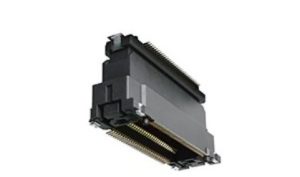

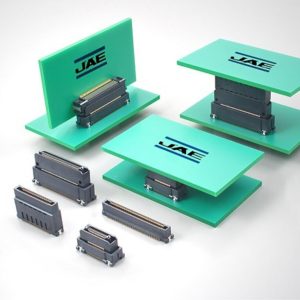

MA01 Series
The MA01 Series is the next generation floating board-to-board connector.
This product features a highly reliable two-point contact structure, achieving high-speed transmission exceeding 8Gbps. With an operation temperature range of -40 ℃ to 125 ℃ the connector is suitable for harsh temperature environments unique to the automotive industry.
Benefits
Applications
Benefits
- Floating tolerance: ±0.5 mm in both X & Y directions
- Stacking height tolerance between boards: ±0.5 mm in Z-axis direction
- Two-point contact structure ensures high contact reliability
- Low insertion and removal forces achieved by roll surface contact structure
- Operating temperature range: -40℃ to +125℃
- 8 Gbps+ high-speed transmission (10GBASE-KR and PCIe Gen3 equivalent)
- Excellent mating process with large guides, supporting automatic assembly and mating
(mating guide length: ±1.0 mm) - Supports automatic mounting
- Allows for multiple connectors to be used on a single board
- Keyed to prevent mis-mating
Applications
- On board equipment (ADAS-ECU, Central gateway, etc.)
- FA equipment
- Semiconductor manufacturing equipment
- Office machines
- Communication equipment
- Measuring equipment
- Broadcasting equipment, and other various applications
