MHCP SERIES Push-pull connectors
Compact, shielded, self-latching connectors suitable for data, signal & power applications
The push-pull range from MH Connectors is perfect for applications where durability and reliability is paramount.
Capable of carrying up to 30A, with EMI/RFI shielding and precision machined contacts, our metal shell push-pull connectors are rated to 5,000 reliable mating cycles. Each series has a cable mount or panel mount socket option with solder cup terminals, and they are fully compatible with existing industry solutions.
Premium quality components are used, including 2 – 34 gold plated solder contacts within a chromium plated brass shell or PSU plastic shell option. Strain relief boots are supplied automatically if configured.
MH push-pull connectors are ideal where a quick but highly reliable connection/disconnection is needed.
- Available in 9, 15, 25, 37 and 50-way in standard density; 15, 26, 44 or 62-way in high density
- Solder cup terminations

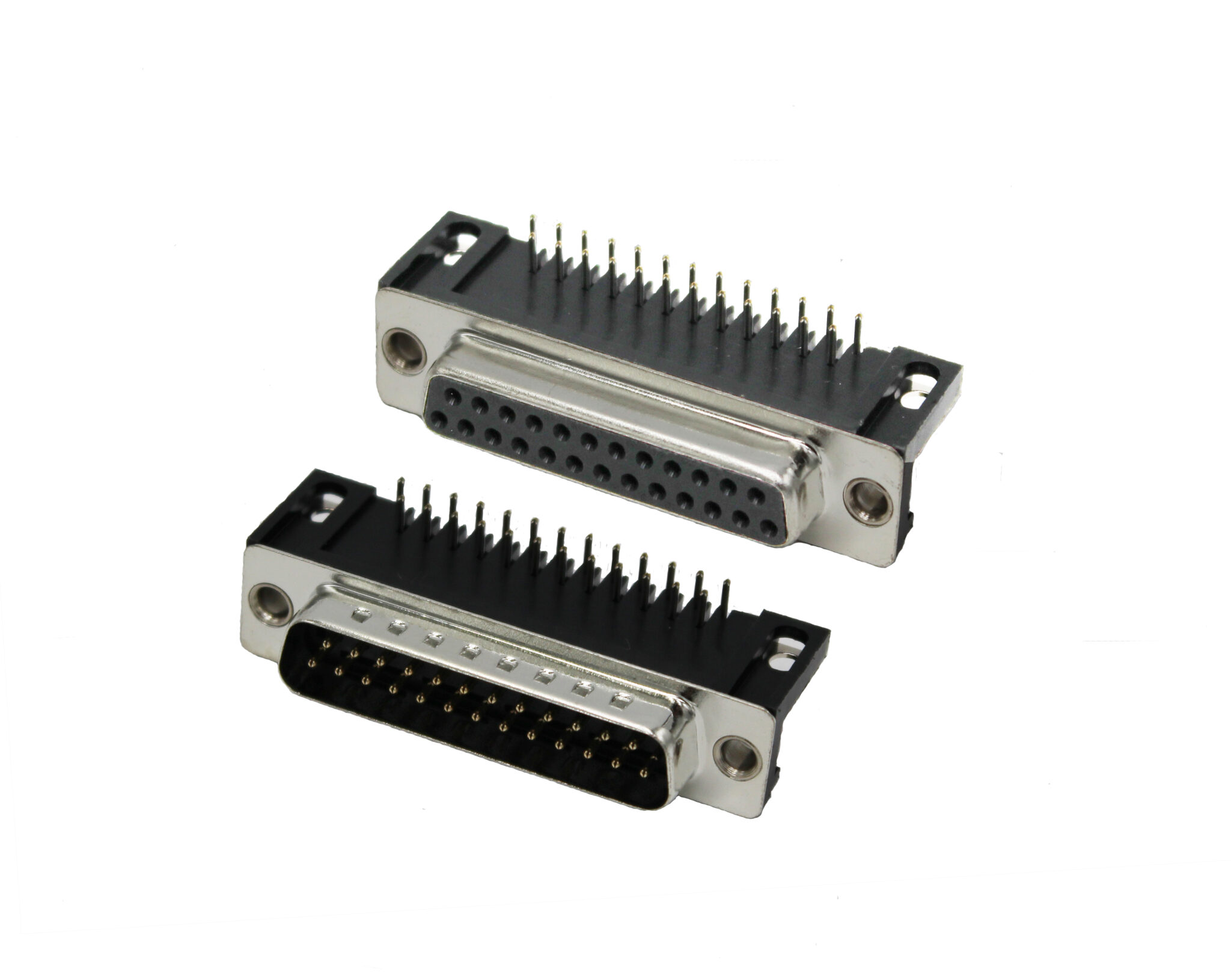

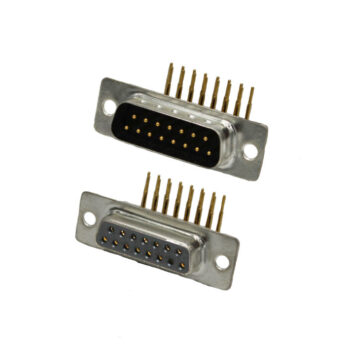

- Right-angle PCB mount and vertical PCB solder tail options
- Crimp contact housing (contacts sold separately)
- IDC terminations

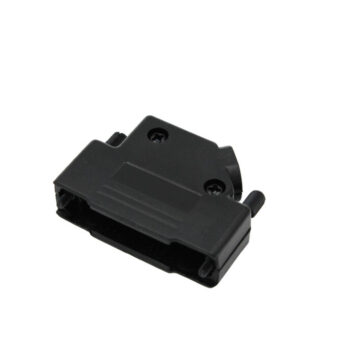

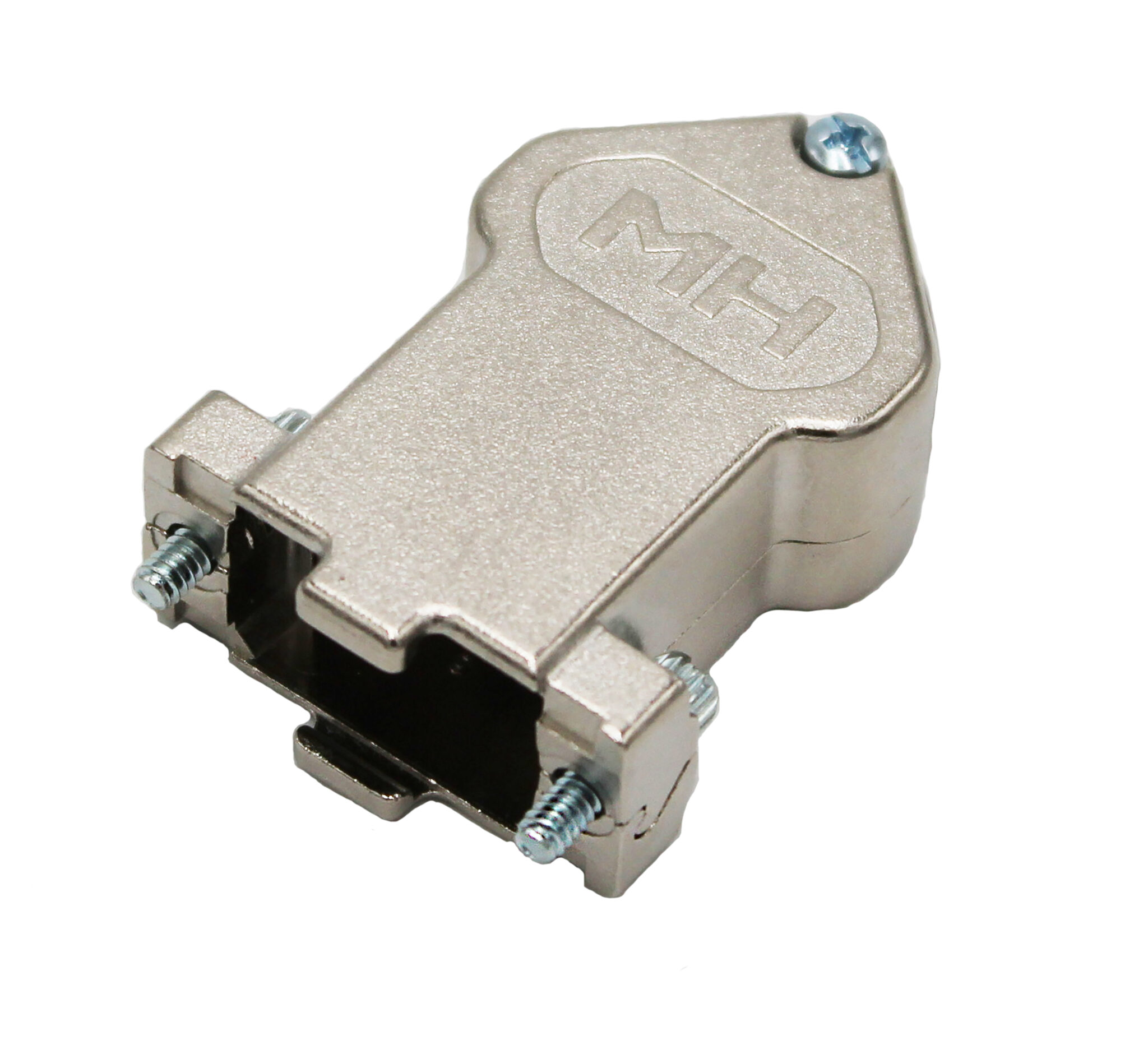

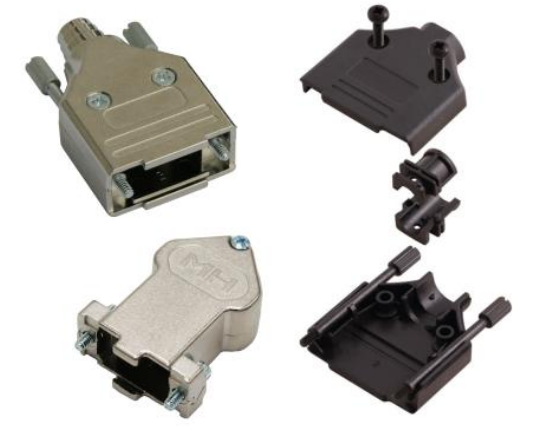

- Compatible with MH hoods & accessories
- Designed to maximise EMI/RFI shielding
- 35°, 45°, 90° and 180° with single, double or triple cable entry
- Optimal connection stability and cable strain relief
- Compatible with MH D-Sub range for 9, 15, 25, 26, 37, 44, 50 or 62-way connectors
- Automation & process control
- Communications & infrastructure
- Consumer
- Energy
- Industrial/automation
- Medical
- Test & measure
- Transportation
