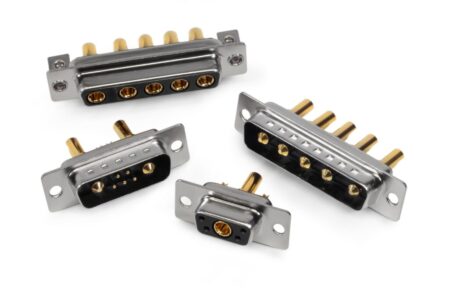

MHCD SERIES Combination Power & Signal D-Sub
Pre-loaded, mixed contact combo D-subs giving signal & power capacity in one unit
Designed for use in heavy duty, demanding applications across multiple industries, the MH Connectors’ range of Combo D-Subs are designed for applications where both power and signal are required from a single connection.
The fully assembled connectors offer highly reliable performance. The metal shells provide full EMI/RFI shielding while the screw machined contacts make them ideal for applications where a reliable connection is crucial.
Solid pin power contacts are rated for up to either 20 or 40 amps and signal contacts are rated for 5 amps.
Available in solder cup, vertical and right-angle board mount options in four industry-standard
configurations, the Combo D-Sub range is perfect for the most challenging design applications.

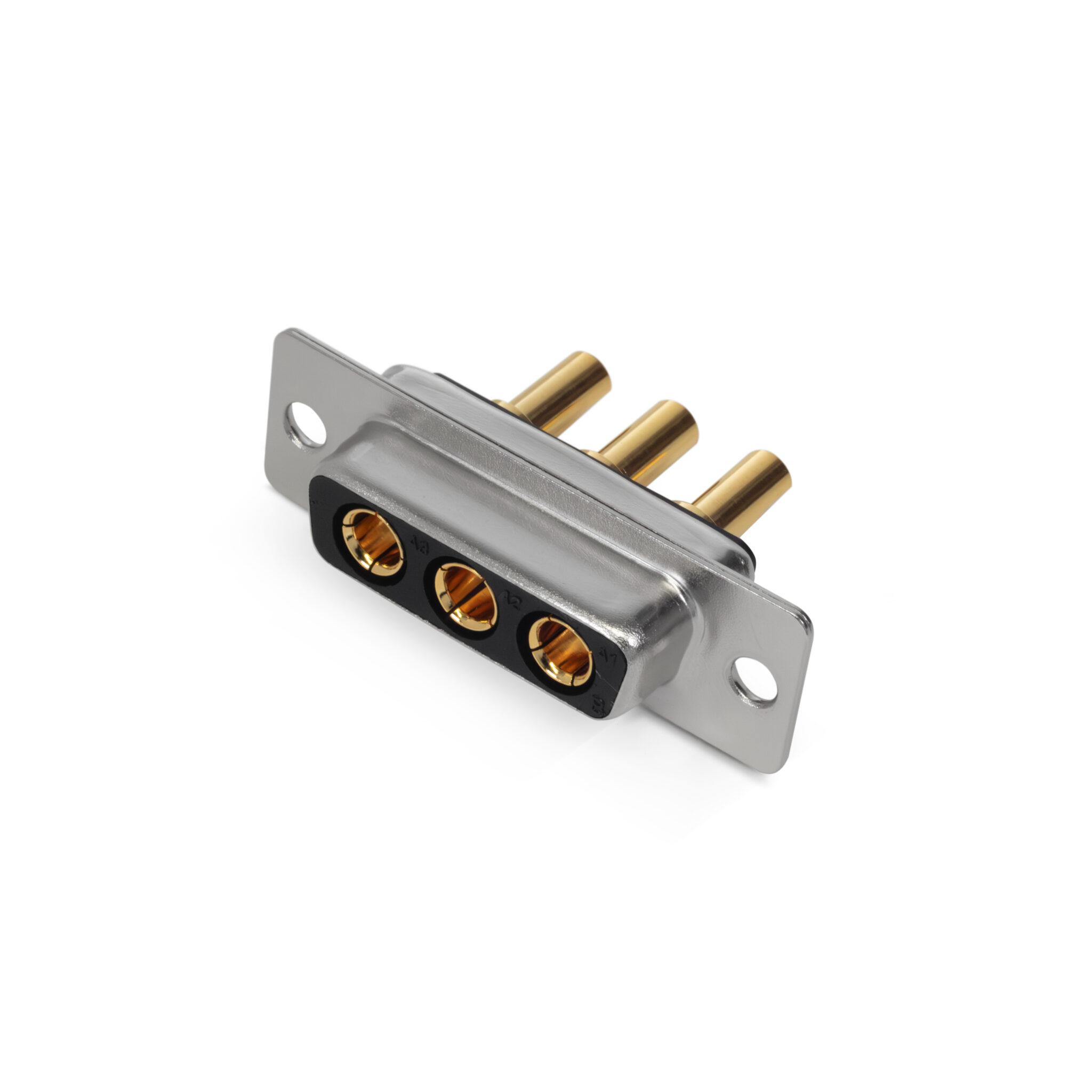

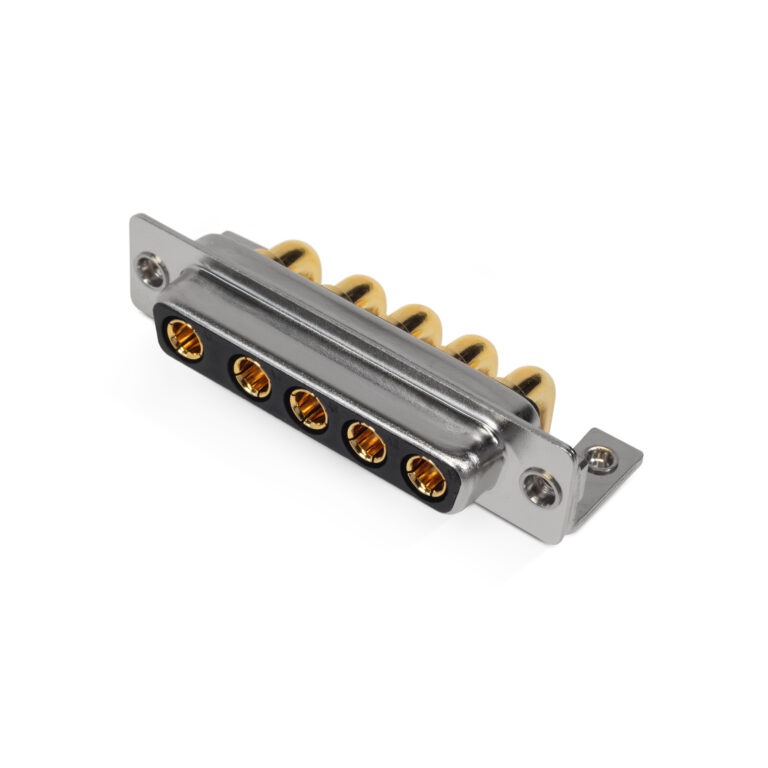

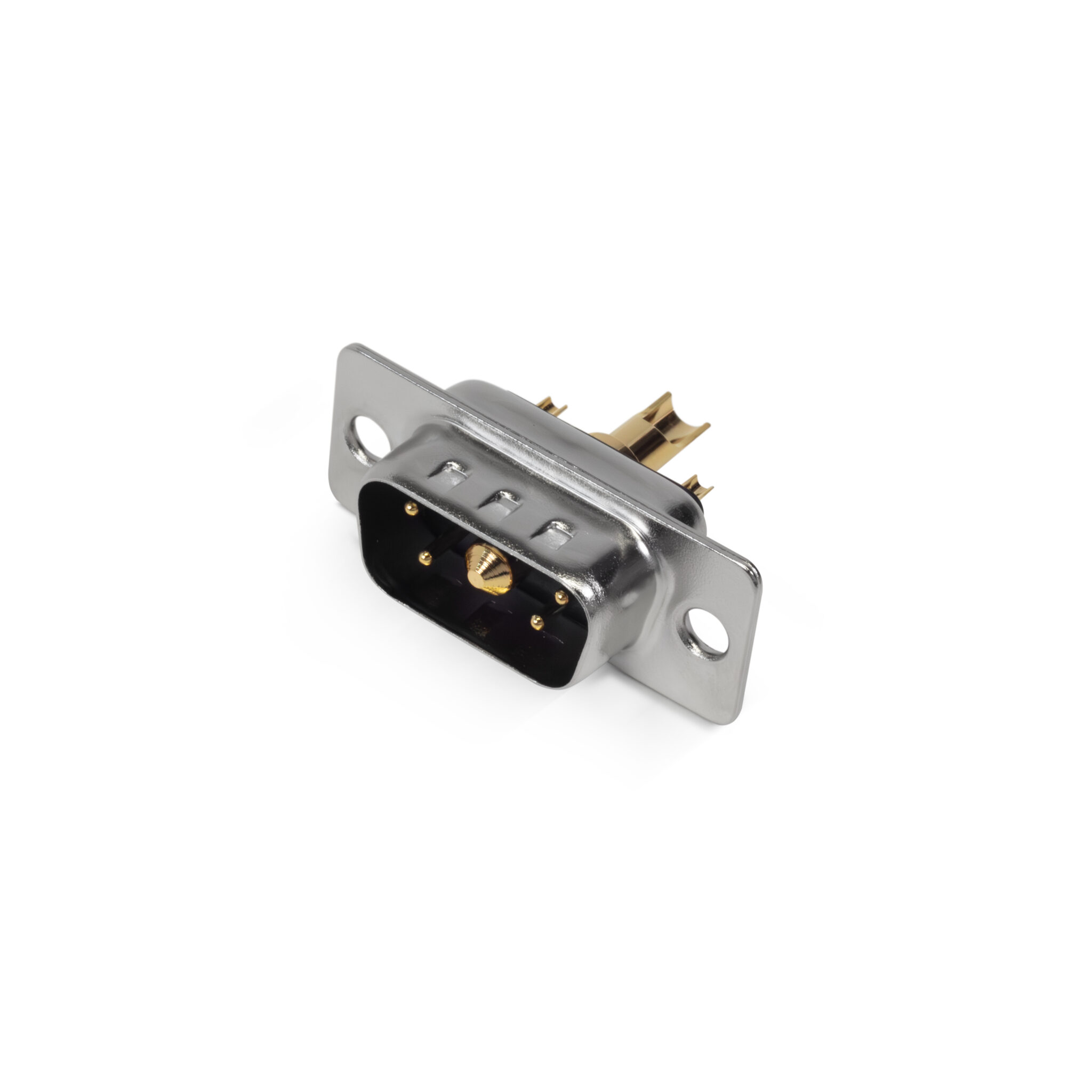

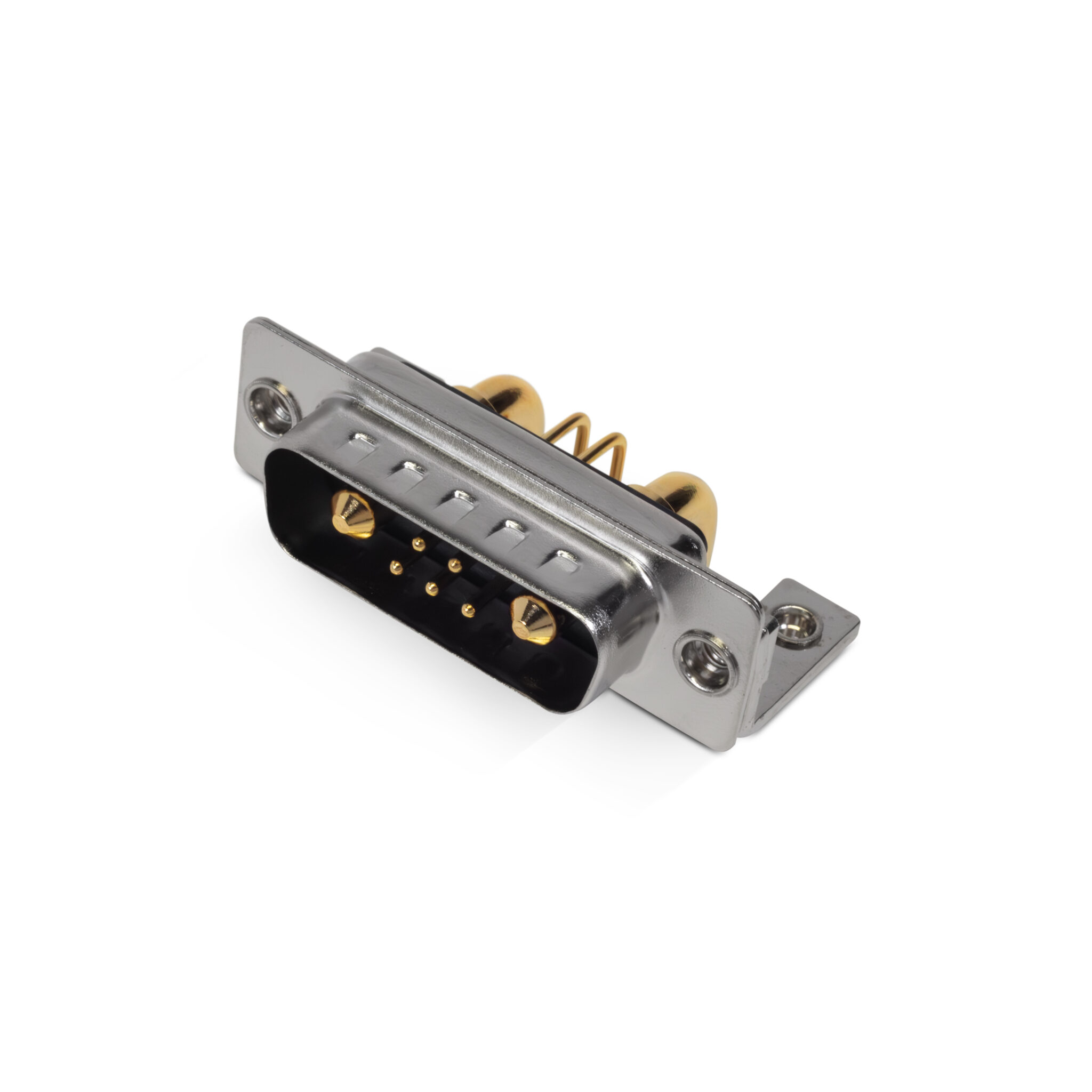

- Available in a range of industry standard contact configurations: 3W3 | 5W1 | 5W5 | 7W2
- All contacts are pre-loaded into the insulator
- Available with solder cup, vertical and right angle pin terminations
- Available with 20 or 40 amp power contacts, 5 amp signal
- Allows signal and power transfer within one connector
- Aviation
- AV/broadcasting
- Consumer
- Data & telecommunications
- Energy
- Industrial automation
- IoT
- Medical
- Process control
- Railway
- Robotics
- Test & measurement
