Molex Fit Families

A wide range of OEMs require power connectors that also support design flexibility. To meet these needs, Fit Family Connectors offer colored polarized housings with isolated terminals, TPAs, positive locks and tangless terminals.

Nano-Fit-Connectors

Common Advantages and Features

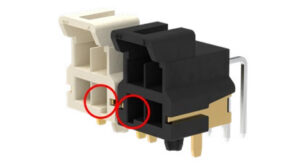

Polarization AND Keying

Polarization and Keying

Reduces the possibility of misalignment. Virtually eliminates misalignment and significantly reduces the number of errors associated with improper installation Polarization AND Keying.

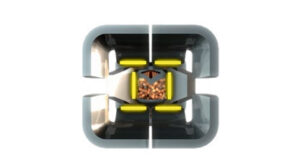

Multiple Contact Points

Multiple Contact Points

Provide a variety of critical contact points between the terminal and the mating contact-point application. Multiple current paths have significant advantages over contact systems with fewer paths or with only two paths

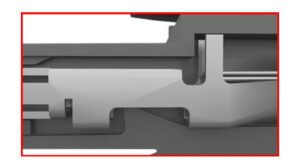

Tangless Terminals

Tangless Terminals

Protect terminals for manufacturers and cable harness assembly teams during packaging and assembly insertion. Save time and money by reducing failures associated with locking wings on electrical terminals Tangless Terminals.

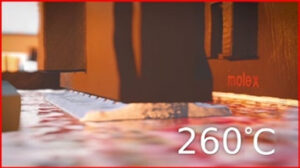

Reflow-Capable Headers

Reflow-Capable Headers

Reduce processing requirements and costs. Reflow soldering is reliable and effective for all pitches of leads and pads, enabling very highquality circuit boards
Tangless Terminals

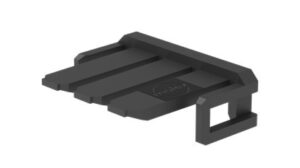

Terminal Position Assurance (TPA)

Helps ensure terminals are fully seated in their housing to reduce back-out; retains terminals if main retention feature fails. Improves the quality of assembly to avoid back-out issues.

Nano-Fit

Ask for more

Micro-Fit

Ask for more

Ultra-Fit

Ask for more

Mini-Fit

Ask for more

Mega-Fit

Ask for more
