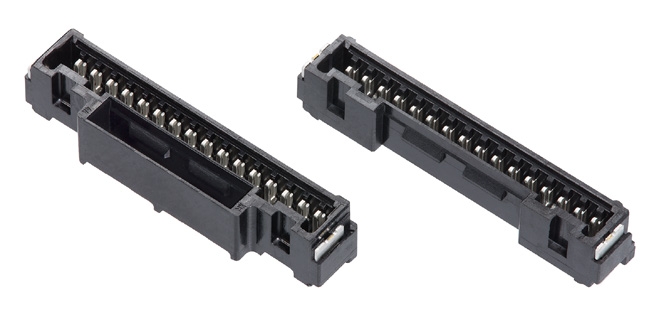

Molex Micro-Lock Plus Connector System

Molex Micro-Lock Plus Connector system is ideal for compact applications. This wire-to-board connector system provides electrical and mechanical reliability in a high-temperature design that meets automotive and other industry requirements. The outer lock strengthens the connector and provides a more reliable connection. The 2- to 16-circuits offer design flexibility in single row plugin vertical and horizontal configurations. Low-halogen and high-temperature capabilities meet automotive industry requirements and withstand harsh environments.

Micro-Lock Plus terminal retention force provides electrical reliability for automotive and other applications in rugged environments. Rated at a 105°C operating temperature and 1.5 A current rating, the Micro-Lock Plus Connector is ideal for general market applications and rugged applications where shock, vibration, or rough handling can dislodge terminals and cause signal interference. The tin-bismuth plating offers reliability and lower applied costs.

Micro-Lock Plus Connectors have a positive latch that provides an audible click, ensuring a secure mate. The Micro-Lock Plus Connector system is available in 2.00mm and 1.25mm pitch, the smallest connector with a positive lock currently on the market.
