Electromechanical Switches

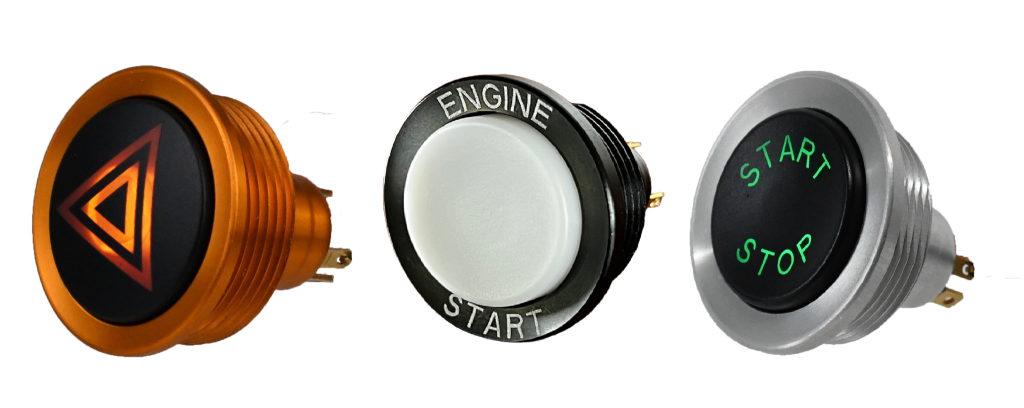

LED-Illuminated LP30M Pushbuttons
LP30M pushbuttons are 30mm in diameter, sealed and LED illuminated. These precision snap-action switches are attractive, yet rugged enough for off-highway, material handling, industrial controls, marine, medical and other demanding applications.
Choose from two IP ratings: watertight to IP68S or moistureproof and dusttight to IP64. Sealed terminals protect the contact area from hostile environments and solder flux on both sealed and unsealed models.
The LP30M switch is offered with low profile or concave style buttons in translucent white, red or amber with or without legends/icons. Six standard LED colors are available.
- Large 30mm diameter button—ideal for start/stop operation
- Aluminum housing with either clear or black color
- LED lighted with the ability to accommodate 2, 12 & 24VDC power & includes reverse voltage protection
- Watertight to IP68S or moistureproof and dusttight to IP64
- Low profile or concave style button in translucent white, red or amber with or without legends/icons
LED-Illuminated LP30M Pushbuttons Video

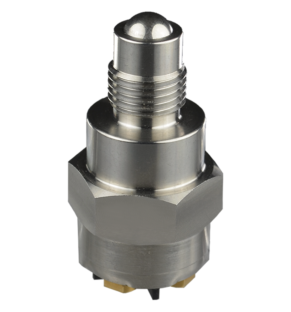

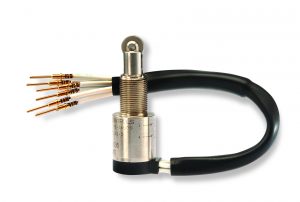

P6-4 Sealed Commercial Grade Limit Switch
The P6-4 series switches are commercial grade limit switches that are water tight and completely sealed to IP68S and IP69K. They are designed to be operated in extreme temperature ranges and with their stainless steel housing, are for use in the most rugged, harsh environments. Available with either a ball or roller plunger actuation method and can be configured as single pole and double pole, plus single throw and double throw.
- Sealed watertight to IP68S and IP69K
- One-piece Stainless Steel housing
- Built to withstand extreme temperatures
- Choice of ball or roller plunger
- Three connection method options
- Industrial Equipment: Industrial Machinery, Construction & Agricultural Equipment, Material Handling, & Packaging
- Automotive Industry
- Mil/Aero: Aircraft controls, Military Vehicles, & Weapon Systems
- Medical Devices
- Renewable Energy

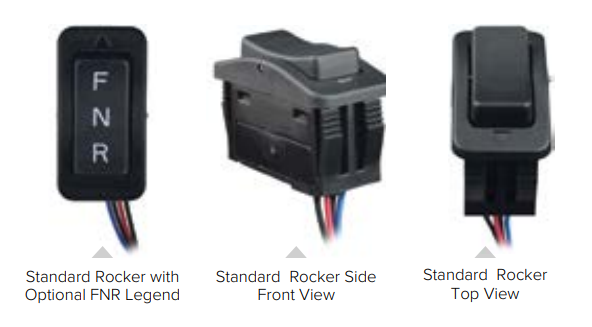

K1S Triple-Throw Rocker Switch
K1S, which is the industry’s smallest, sealed, short-behind-panel rocker, is a great fit for grips and panels. It is available as a true ON-ON-ON rocker for use as a Forward-Neutral-Reverse (FNR) switch.
This logic-level, snap-in rocker has been tested up to 1 million cycles. It is available in single- and double-pole configurations with maintained or momentary action in either two or three positions. The double-pole version offers redundancy for each switch state, providing increased safety.
- Fits industry-standard panel openings
- Available in standard and large sizes that fit the same panel opening size
- Contact system is sealed to IP68S; with an optional rubber boot, the switch is panel sealed to IP68S.
- Molex connector or wire lead termination
- Choose from 73 standard legends or add your own custom logo, lettering or legend.
- RoHS compliant
K1S: Sealed ON-ON-ON Rocker Switch Video
HTWS Hall Effect Thumbwheels
The HTWS Hall effect proportional output thumbwheel is a spring return-to-center, single axis thumbwheel that provides a linear change in voltage output corresponding to actuator movement in either direction from center. Its smaller size makes it a perfect choice for use in grips or panels where space is limited. The HTWS snaps into a 0.895” x 0.420” panel opening.

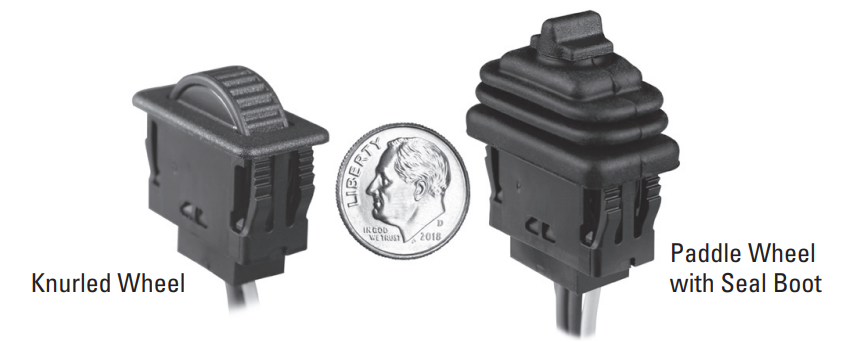

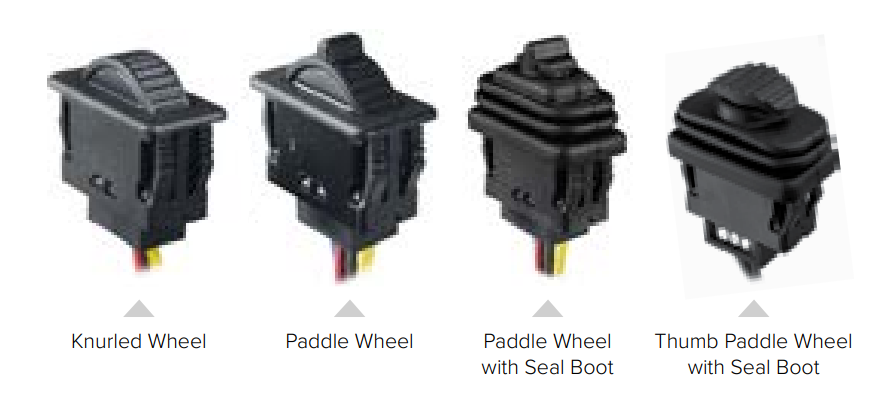

Choose from a knurled wheel, a paddle wheel or a thumb paddle wheel style. The HTWS is available with eight output options, including increasing and decreasing voltage output from the center position to the full travel position and single or dual (redundant) outputs.
- Spring return-to-center single axis actuator
- Eight output options
- Electronics sealed to IP68S; optional sealing boot offers added protection against dust, sand and water ingress
- Knurled wheel, paddle wheel and thumb paddle wheel styles
- Up to 3 million cycle rotational life
- Excellent EMI/RFI immunity
- Flow through design
- Available with flying wire leads or pin connection
- RoHS compliant
