Joysticks and Grips
JHL Joystick with PLd
Offering high performance in a cost-effective, sealed Hall effect joystick, the JHL series boasts a cycle life of up to 6 million cycles and handles up to 225 lbs. static load strength. Electronics are sealed to IP68S, and it offers excellent immunity to RFI and EMI per SAE J1113.

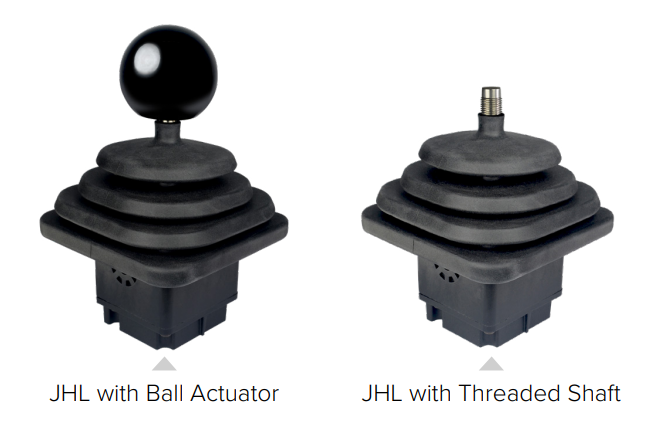

The standard JHL is a top-mount joystick with a threaded shaft or ball knob. The JHL can also be paired with an OTTO G3 Series grip to make an integrated HJLG3 joystick/grip assembly.
Choose from various output configurations, including single analog, redundant analog output, CANopen, J1939 and PLd for functional safety applications. The PLd option has been designed in accordance with Safety Standard ISO 13849-1, performance level D, Category 3 to enable communications on two separate channels.
- Comes with a threaded shaft or ball knob or it can be paired with an OTTO G3 series grip
- Up to 6 million cycle mechanical life; up to 1 million cycles with detent
- Multiple output configurations, including PLd for functional safety applications
- CANopen and J1939 outputs with integral Deutsch connector
- Excellent EFI/RFI immunity
- Electronics sealed to IP68S
- Up to 225 lbs. static load strength
- Top mount is standard
G3-M Medium Grip
The G3-M is medium-sized, rugged grip that offers numerous standard faceplates and hundreds more custom switch configurations in a compact package. The ergonomically designed grip fits comfortably in operators’ hands for left- or right-handed operation, with or without gloves. A trigger on the back of the handle is optional.
The grip can be panel mounted as a fixed control grip or combined with an OTTO joystick.
- Compatible with OTTO JH, JHL and JHM series Hall effect joysticks
- 25 standard faceplates oriented from 0, 90 and 180 degrees
- Customize with a wide variety of pushbuttons, rockers, toggles and Hall effect switches
- Modular design provides high level of customization, reduces need for tooling charges
- Various mounting and termination styles

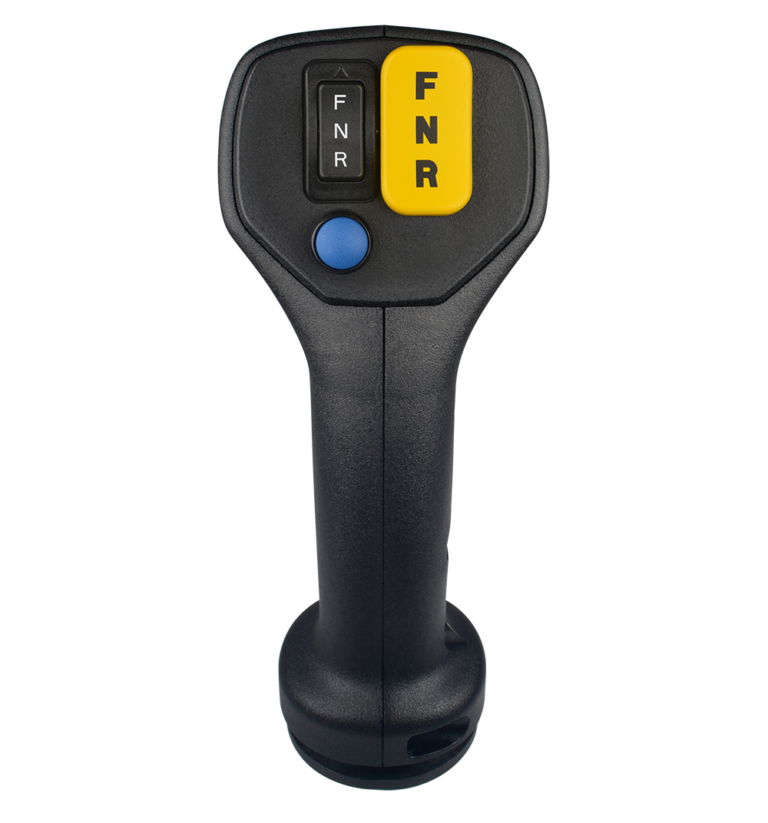

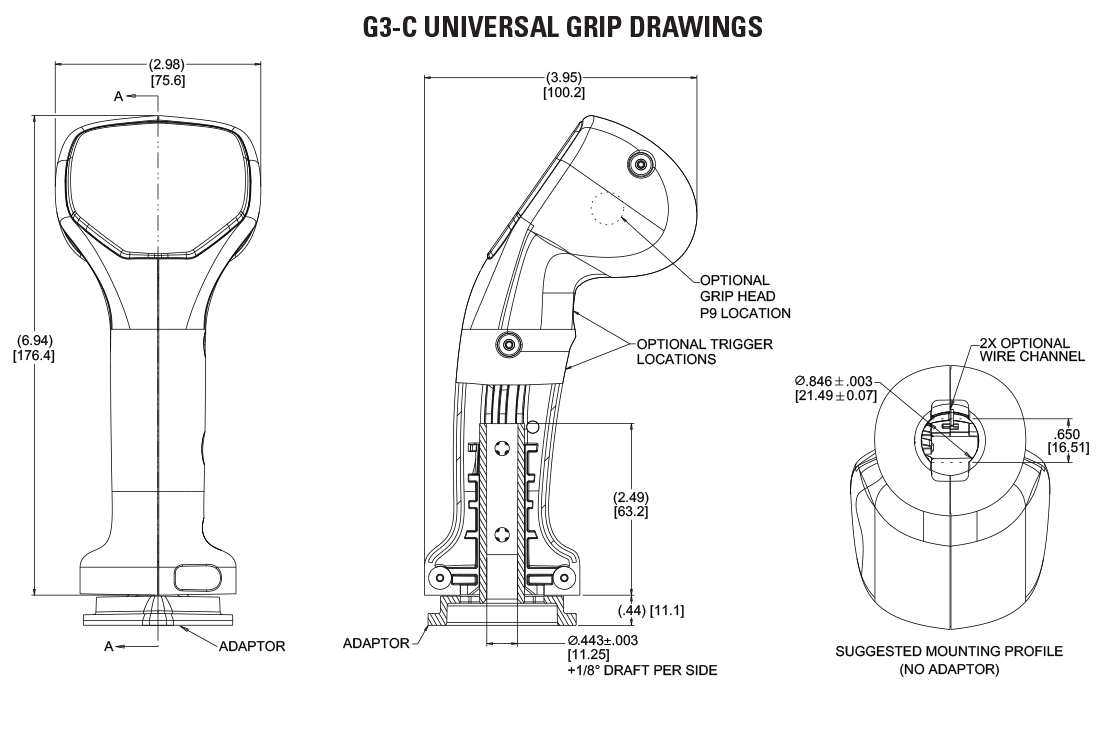

G3-C Universal Grip
OTTO’s customizable G3-C Universal Grip works well with only a few switches or high switch content for versatile operation of high-performance industrial vehicle and machinery applications.
The grip has 13 standard faceplates; custom options are available. The G3-C can be panel mounted as a fixed control grip or combined with an OTTO joystick. Options includes Z-axis rotation, Grip Touch sensing, trigger switches on the back of the grip and a CANbus board in the grip head.
- Compatible with OTTO JH, JHL and JHM series Hall effect joysticks
- Choose from 13 standard faceplates or customize with hundreds of switch combinations
- Back of the grip handle can come with pushbuttons, a thumbwheel or trigger switches
- CANbus board optional in grip head (contact OTTO)
- Z-axis option with +/- 25° rotation
- Grip Touch operator sensing available on handle
- Single and dual output available
- Various mounting and termination styles
- Modular design reduces the need for tooling charges
