  9. D Series, D-HR Series,...

D Series, D-HR Series, DA(UL) Series, DB(UL) Series, D200 Series

Cynergy3 Logo

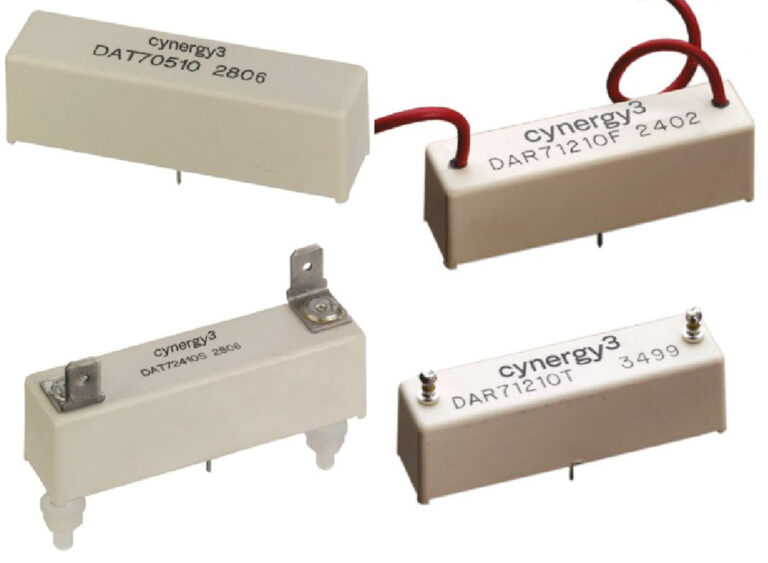

D Series- High Voltage Relays 10KV & 15KV

Very high isolation voltages, up to 15 kV, are achieved through the use of high vacuum reed switches with either rhodium or tungsten contacts and make these relays suitable for high reliability applications, such as cardiac defibrillators, test equipment and high voltage power supplies. The rhodium contact relays have low contact resistance, while the tungsten contact relays can switch higher voltages.

PCB or panel mount, via nylon studs, versions are available. Connection options for the HV include PCB, solder turret (wire wrap), flying lead and 0.25” spade terminals.

D-Series-Compilation

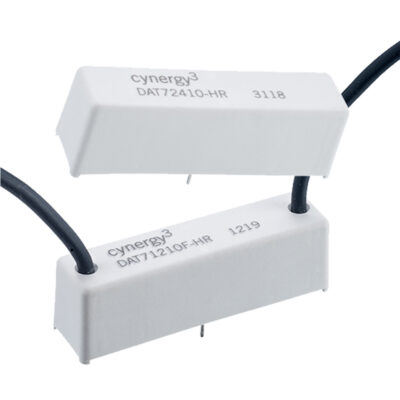

D-HR Series – High Insulation Resistance, High Voltage Relays, 5KV, 7.5KV, 10KV & 15KV

Very high isolation voltages, up to 15 kV, are achieved through the use of high vacuum reed switches. Rhodium or tungsten contacts make these relays suitable for high reliability applications, such as cardiac defibrillators, test equipment, and high voltage power supplies.

The rhodium contact relays have low contact resistance, whilst the tungsten contact relays can switch higher voltages.

D-HR-Series-comp

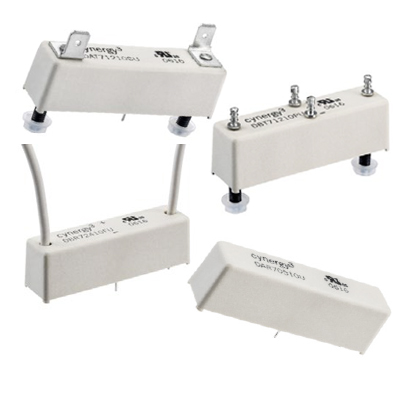

DA(UL) and DB(UL) SERIES – UL APPROVED*, NORMALLY OPEN, HIGH VOLTAGE RELAYS – 10KV, 7.5KV & 5KV

The DA(UL) and DB(UL) series is a UL* approved very high isolation voltages (up to 10kV) are achieved through the use of high vacuum reed switches with either rhodium or tungsten contacts and make these relays suitable for high reliability applications, such as cardiac defibrillators (PFA), test equipment and high voltage power supplies.

A choice of 5kV, 7.5kV and 10kV isolation voltages is available.

The rhodium contact relays have low contact resistance, while the tungsten contact relays can switch higher voltages, DB(UL) up to 7000V DC/ AC peak.

PCB or panel mount, via nylon studs, versions are available.

Connection options, for the HV, include PCB, solder turret (wire wrap), flying lead and 0.25” spade terminals.

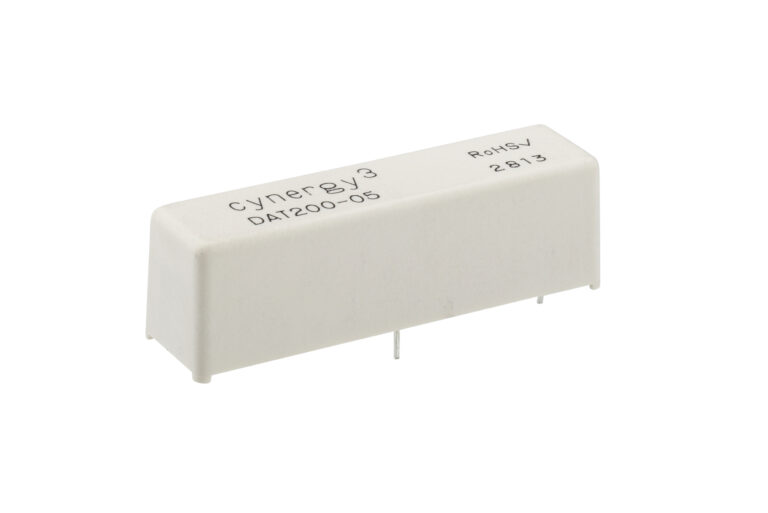

D200 SERIES – HIGH POWER 200W REED RELAY WITH 7KV ISOLATION

The D200 series combines a high power 200W switching capacity with isolation of 7kV across the contacts. This switching performance is achieved through the use of high vacuum reed switches with tungsten contacts. These relays are suitable for high reliability applications, such as test equipment and high voltage power supplies. These are PCB mount relays, though custom options may be available on request.

sensata-d200
