S8 Series, S8(UL) Series, S8-HR Series

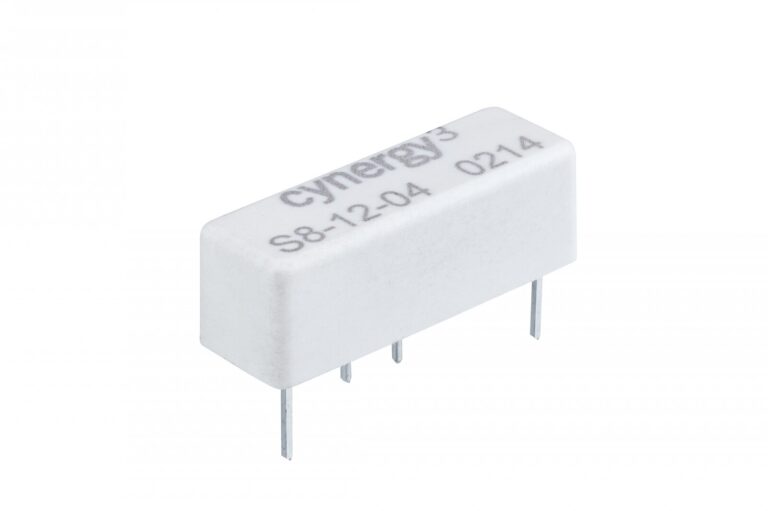

S8 RELAY SERIES – MINIATURE HIGH VOLTAGE RELAY
The S8 series is a miniature high voltage reed relay for applications where space saving is a prime consideration. The coil pins are positioned near the center of the relay while the contact pins are near the ends to give improved isolation between the High Voltage contacts and the low voltage coil.
Features
Features
- Space saving package
- Isolation Voltage across contacts 4kV or 5kV (dependent on coil voltage)
- Isolation Voltage 7kV contact to coil
- 2.5A carry current
- Up to 1000V switching voltage

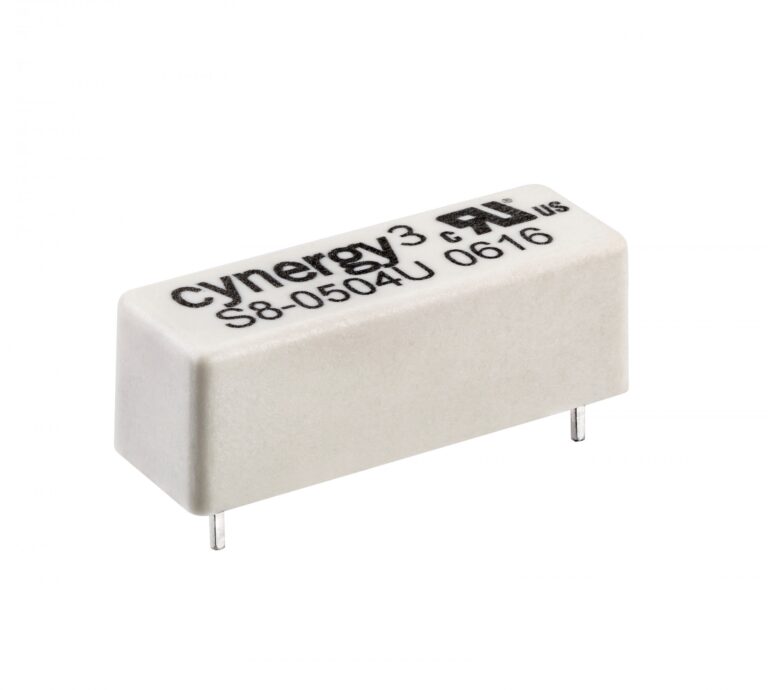

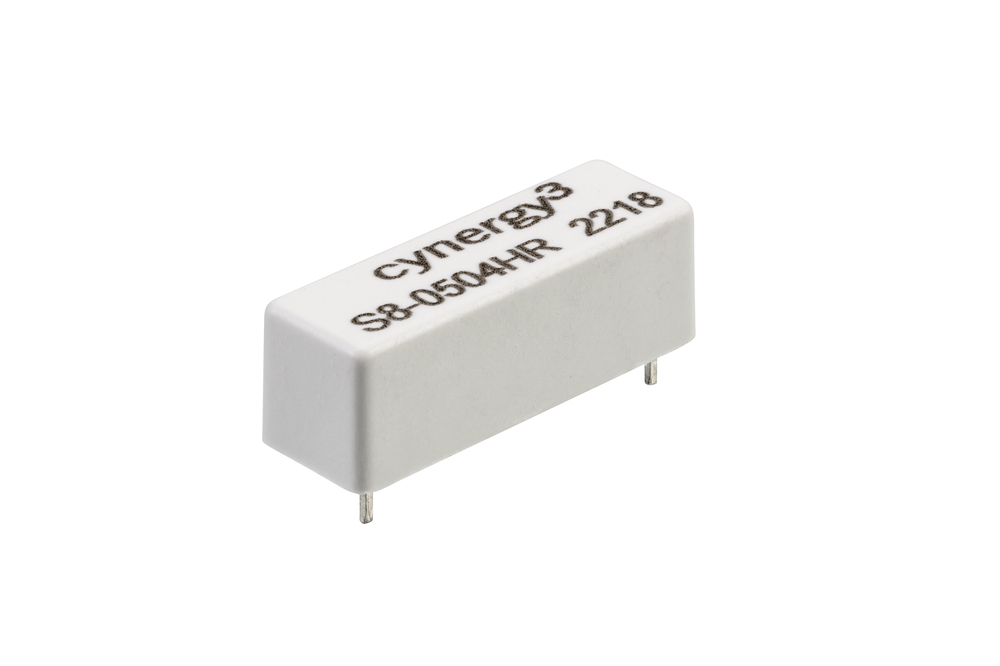

S8-HR SERIES and S8(UL) – UL APPROVED* MINIATURE HIGH VOLTAGE RELAY WITH HIGH INSULATION RESISTANCE
The S8-HR series is a UL* and S8(UL) approved miniature high voltage reed relay for applications where space saving is a prime consideration. The coil pins are positioned near the center of the relay while the contact pins are near the ends to give improved isolation between the high voltage contacts and the low voltage coil.
Features
Features
- Space saving package
- Up to 1000V switching voltage
- Isolation Voltage 7kV contact to coil
- 2.5A carry current
- Isolation Voltage across contacts 4kV or 5kV (dependent on coil voltage)
- UL approved
