HyperGrip® Series

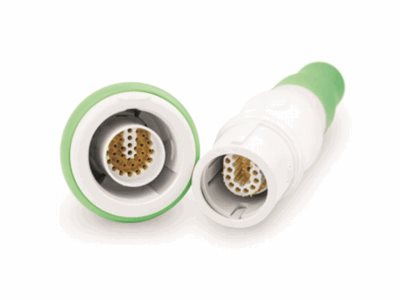

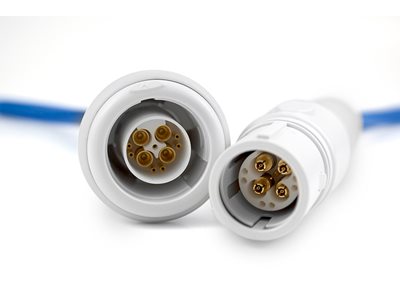

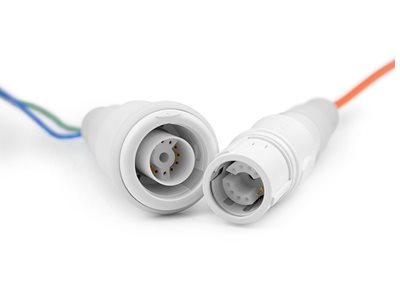

HyperGrip is a circular plastic, user-configurable, color coded connector with push/pull latching design allowing for one-hand disconnect. HyperGrip is designed to meet medical industry requirements such as finger-proofing to IEC60601, flammability rated to UL94, and is compatible with most sterilization requirements. The Series includes disposable plugs for HG2 and HG4 sizes designed to support overmolding and high volume production methods and to withstand at least 30 cycles whilst ensuring the connector performance in terms of insulation resistance, dielectric withstanding voltage, current carrying, and low level current resistance..
- 5, 12 19 and 33 contact positions
- 1 A per contact
- IP65 sealed when mated
- EMI/RFI shielding option
- Push/pull latching design
- Ideal for disposable applications

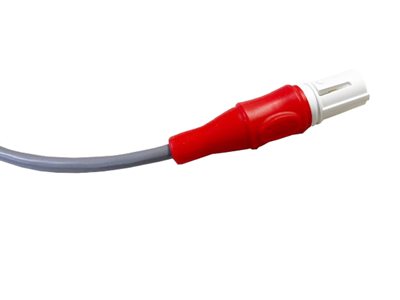

- Disposable option for 12 and 33 way plugs
- 6 Keyable positions
- 5 color options
Unique to HyperGrip is the front or rear panel mount receptacle design which allows the user to mount the harness assembly from inside or outside of the device enclosure. HyperGrip is designed to meet medical industry requirements such as finger-proofing to IEC60601, flammability rated to UL94, and is compatible with most sterilization requirements.
- Catheter
- Patient monitoring
- Portable therapeutic
- MRI/CT scanning
- Surgical imaging
