Fabric over foam

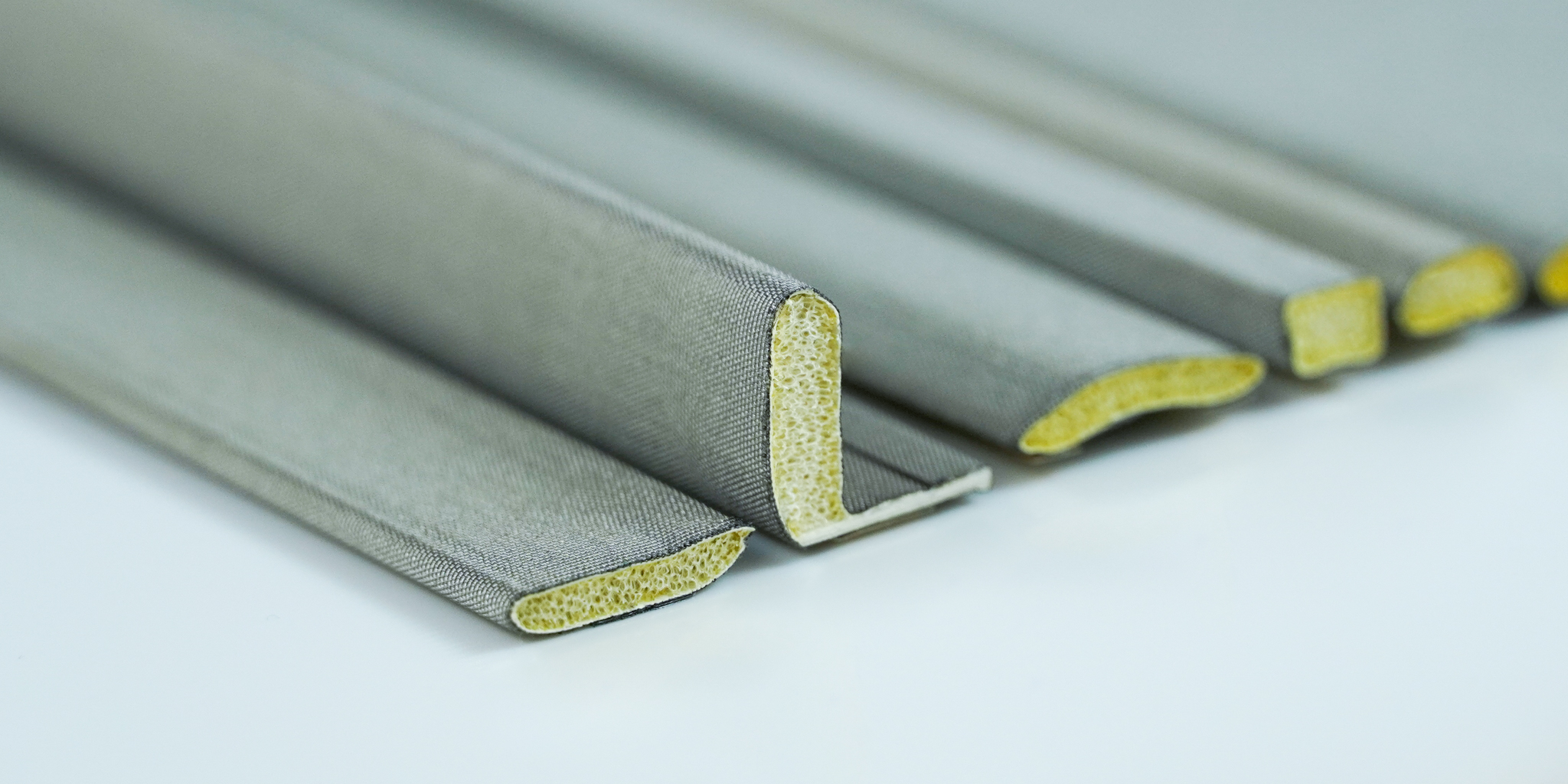

Our new 2500 series fabric over foam product offering are UL-94 V-0 Certified and Halogen Free. They are available in over 150 profiles and sizes. Our electrically conductive nickel-plated copper nylon ripstop fabric over resilient open cell core polyurethane gaskets provide the electrical characteristics necessary for high attenuation shielding. RoHS, REACH and UL 94 V-0 Halogen Free compliance ensures these gaskets are environmentally!
Benefits
Applications
Benefits
Do your products require a high-attenuation shielding? Our nickel-plated, RoHS-complaint metalized fabric-over-polyurethane gaskets are just what you need. Tech Etch’s foam core gaskets are setting a new standard for EMI shielding. Bonding the substrate to the core ensures self-termination when cut and offers top-notch flexibility. Our product profiles have a compression set of less than 2.6%.
For easy installation, our stick-on mounting features double-sided, pressure-sensitive tape. Just apply on a clean surface and allow a full 24 hours for curing.
Applications

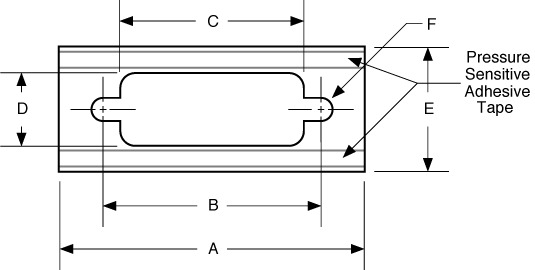

- In addition to our 2400 series, we also offer a 2600 version. Our custom shielding gaskets use metalized fabric wrapped around a polyurethane foam core where low-cost steel rule dies are used for cutting the fabric . The fabric is bonded to the core, to assure self-termination when needed.
- These gaskets can be custom-cut to your specific shape and size. Be sure to consider the following when creating a design for your gaskets:
- The minimum distance between any cutout to the edge should be equal to the thickness of the material.
- The minimum hole diameters should also be equal to the material thickness.
- The softness of the material will influence the dimensional tolerance.
