| Attribute | Value |
|---|---|
| Manufacturer: | NorComp |
| Manufacturer Part Number: | NorComp 171-050-213R001 |
| Series: | 171 |
| Gender: | Receptacle |
| Termination Method: | Solder |
| Contact Plating: | Gold Flash |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -50 °C |
| Mount Angle: | Straight |
| Number of Positions: | 50 |
| Shell Material: | Steel |
| Shell Finish: | Nickel Plated |
| Current Rating: | 5 A |
| Voltage Rating: | 250 VAC |
| SKU: | TEX171-050-213R001 |
171-050-213R001
Specifications
Detailed Description

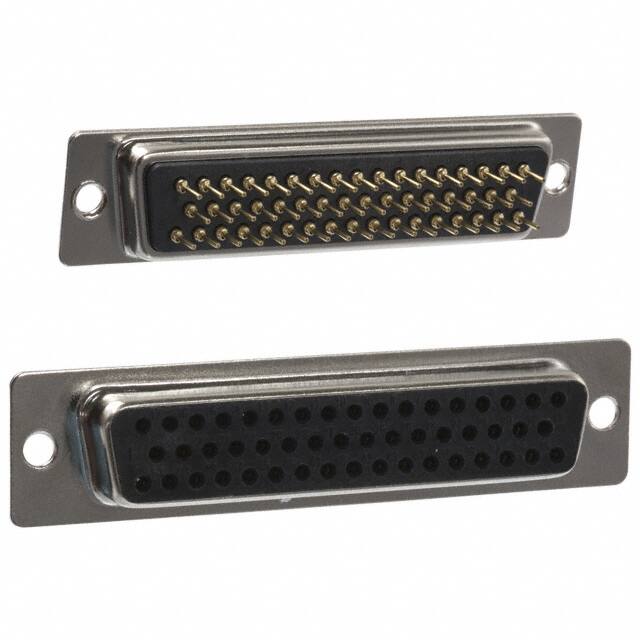

Introducing the 171-050-213R001, a Female D-Sub 50 Position Straight PCB Dip Solder connector from our 171 series. This high-quality receptacle features gold flash contact plating for optimal conductivity, with a maximum operating temperature of 125°C and a wide range of -50°C to ensure reliable performance in various environments. With a straight mount angle and steel shell material with nickel plating, it offers durability and secure connections. Rated for 5A current and 250VAC voltage, it's suitable for a wide range of applications. RoHS compliant and in stock for immediate shipment, this connector is the perfect choice for IO connections that require both performance and reliability. (Acronym: 171050213R001)
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
