182-015-213R561

TEX182_015_213R561
Heilind Number:TEX182-015-213R561
Manufacturer:NorComp
Manufacturer Number:182-015-213R561
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

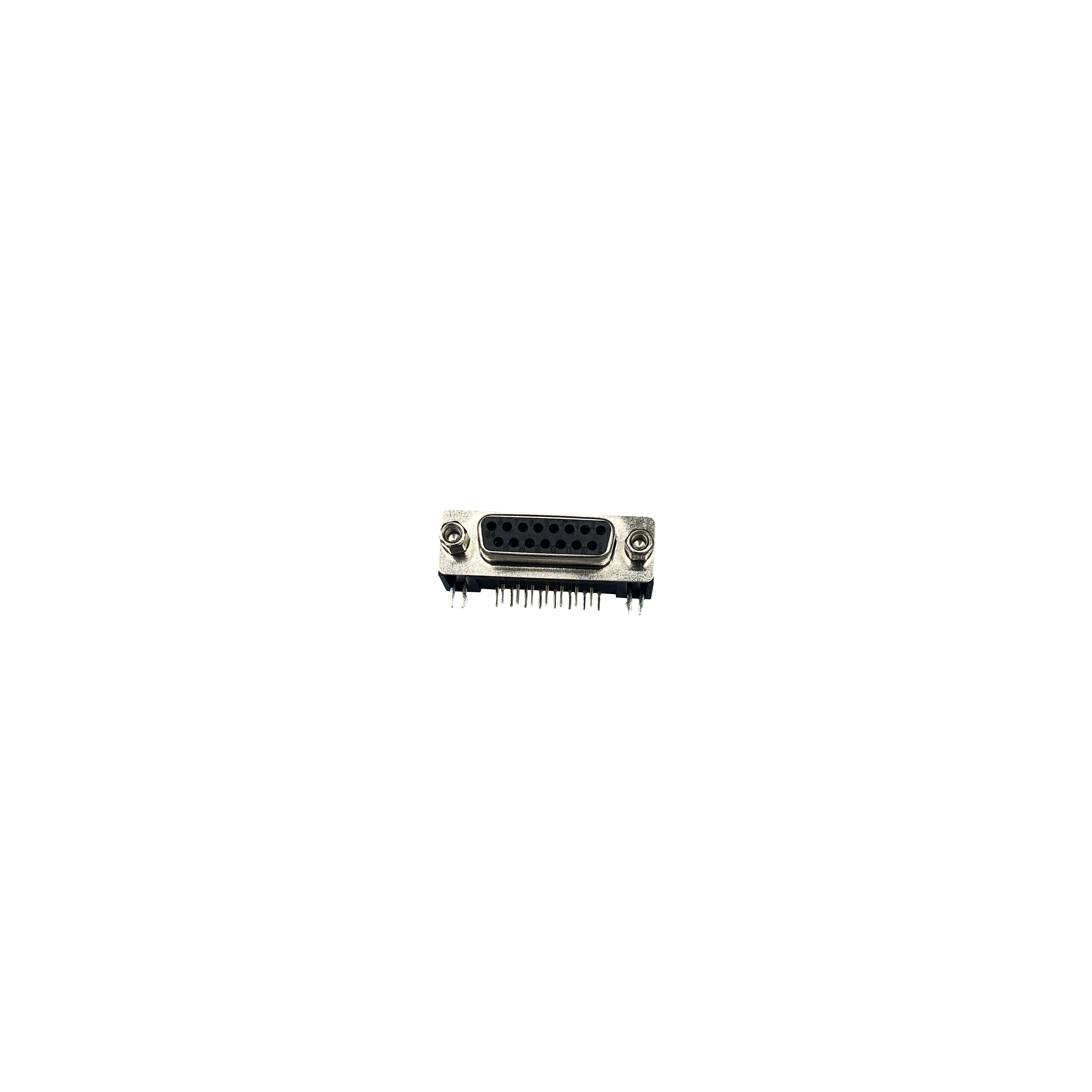

Female .318" Footprint D-Sub 15 Position Right Angle PCB Dip Solder

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp 182-015-213R561
Gender:Receptacle
Series:182
Mount Angle:Right Angle
Shell Finish:Nickel Plated
Current Rating:5 A
Shell Material:Steel
Voltage Rating:300 VAC
Contact Plating:Gold Flash
Termination Method:Solder
Number of Positions:15
Maximum Operating Temperature:105 °C
Minimum Operating Temperature:-55 °C
SKU:TEX182-015-213R561

Detailed Description

Female .318" Footprint D-Sub 15 Position Right Angle PCB Dip Solder connector, SKU 182-015-213R561, offers reliable connectivity in electronic applications. With a gold flash contact plating and steel shell material with nickel plating, it ensures durability and efficient signal transmission. This RoHS-compliant connector has a current rating of 5A and voltage rating of 300VAC, making it suitable for a wide range of industrial and commercial uses. Operating temperatures ranging from -55°C to 105°C guarantee performance in diverse environmental conditions. Perfect for PCB assembly, it features a right-angle mount angle for space-saving installation. In the 182 series, this high-quality receptacle is a vital component for IO connectors and other connectivity solutions.
