| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | NorComp |
| Manufacturer Part Number: | NorComp CDFS7W2103L412 |
| Gender: | Plug |
| Series: | CDF |
| Mount Angle: | Straight |
| Shell Finish: | Nickel Plated |
| Current Rating: | 40 A, 5 A |
| Shell Material: | Steel |
| Voltage Rating: | 300 VAC |
| Contact Plating: | Gold |
| Termination Method: | Solder Cup |
| Number of Positions: | 7 (5 Signal, 2 Power) |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -25 °C |
| Power Wire Size: | 8 AWG |
| Signal Wire Size: | 20 AWG |
| SKU: | TEXCDFS7W2103L412 |
CDFS7W2103L412
Specifications
Detailed Description

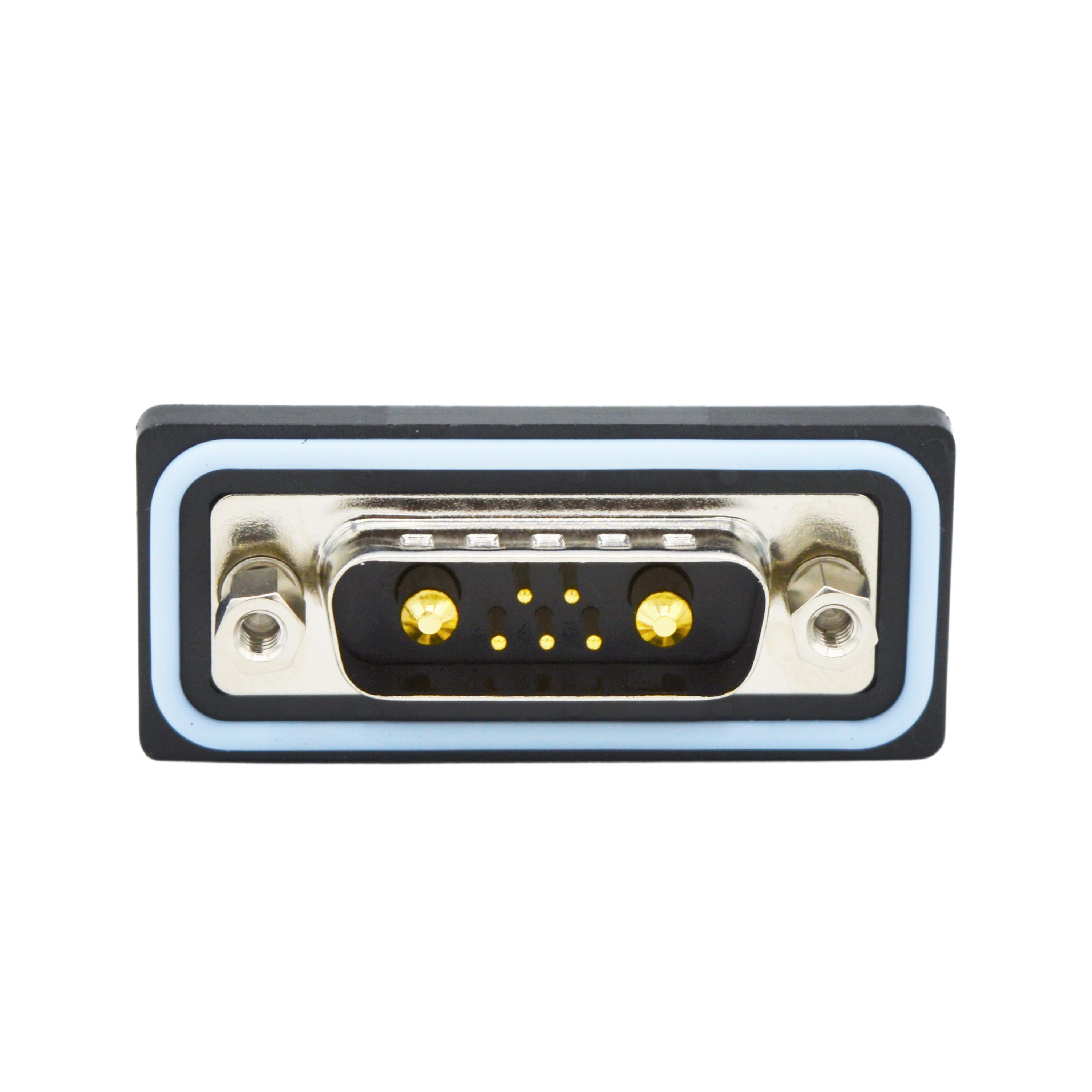

Introducing the CDFS7W2103L412, a robust IP67 Male Mixed Contact D-Sub Flange Sealed connector designed for reliable performance in demanding environments. This Plug connector, part of the CDF series, features a Straight Solder Cup termination method with Gold contact plating, ensuring secure and durable connections. Operating smoothly in temperatures ranging from -25°C to 85°C, this connector is ideal for a wide range of applications. With 7 positions (5 Signal, 2 Power) and a current rating of 40A/5A, it accommodates both power and data signals efficiently. The Steel shell construction with Nickel plating guarantees longevity, while the 20 AWG signal wire size and 8 AWG power wire size provide optimal conductivity. Meeting stringent quality standards, this connector is a dependable choice for industrial, aerospace, and military applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
