| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 2604-3507 |
| Pitch: | 11.5 mm |
| Series: | 2604 |
| Wire Size: | 24 - 12 AWG |
| Mount Type: | Through Hole |
| Housing Color: | Gray |
| Conductor Size: | 24 - 12 AWG |
| Current Rating: | 32 A |
| Voltage Rating: | 1000 V |
| Contact Plating: | Tin |
| Number of Poles: | 7 |
| Contact Material: | Electrolytic Copper |
| Housing Material: | Nylon |
| Number of Levels: | 1 |
| Termination Method: | Push-In |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -60 °C |
| Part Aliases: | 60326031 |
| SKU: | WAG2604-3507 |
2604-3507
| Heilind Number: | WAG2604-3507 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 2604-3507 |
| ECAD Model: | |
Specifications
Detailed Description

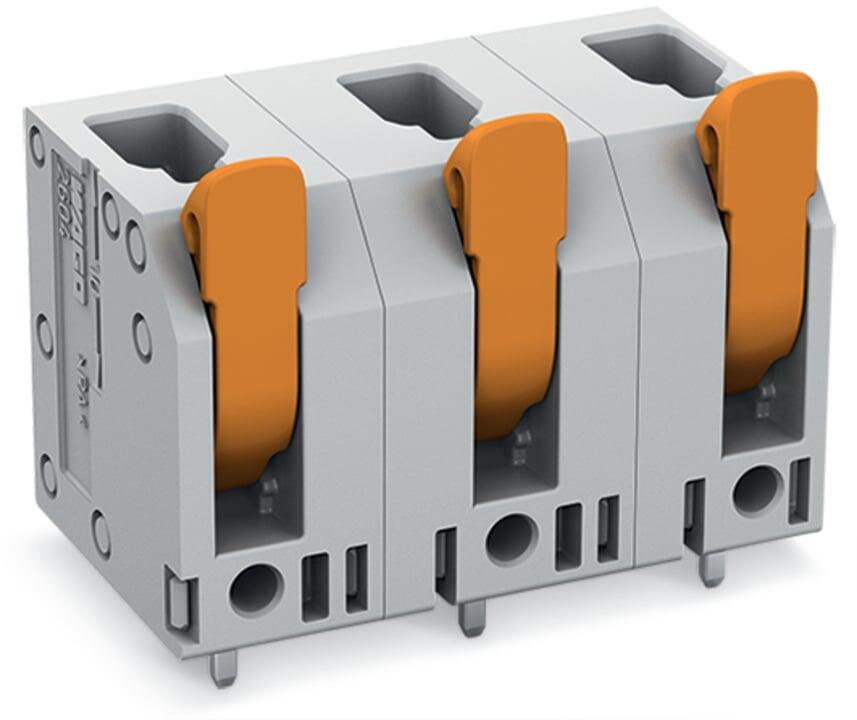

Featuring a durable Nylon housing in a sleek Gray color, the 2604-3507 PCB Terminal Block offers reliable connectivity for your electronic projects. With a convenient Through Hole mount type and Push-In termination method, installation is quick and easy. The Electrolytic Copper contacts with Tin plating ensure efficient signal transmission, while the UL 94V-0 flammability rating guarantees safety. This terminal block supports wire sizes ranging from 24 to 12 AWG, accommodating a variety of applications. With a high current rating of 32 A and a voltage rating of 1000 V, it is suitable for demanding environments. Whether in industrial settings or DIY projects, the 2604-3507 is a dependable choice for your connection needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 2604-3507 |
| Other Names: | 60326031 |
