| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 804-307 |
| Pitch: | 7.5 mm |
| Series: | 804 |
| Wire Size: | 20 - 12 AWG |
| Mount Type: | Through Hole |
| Housing Color: | Gray |
| Conductor Size: | 20 - 12 AWG |
| Current Rating: | 24 A |
| Voltage Rating: | 630 V |
| Contact Plating: | Tin |
| Number of Poles: | 7 |
| Contact Material: | Electrolytic Copper |
| Housing Material: | Nylon |
| Number of Levels: | 1 |
| Termination Method: | Push-In |
| Flammability Rating: | UL 94V-0 |
| Part Aliases: | 51131973 |
| SKU: | WAG804-307 |
804-307
| Heilind Number: | WAG804-307 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 804-307 |
| ECAD Model: | |
Specifications
Detailed Description

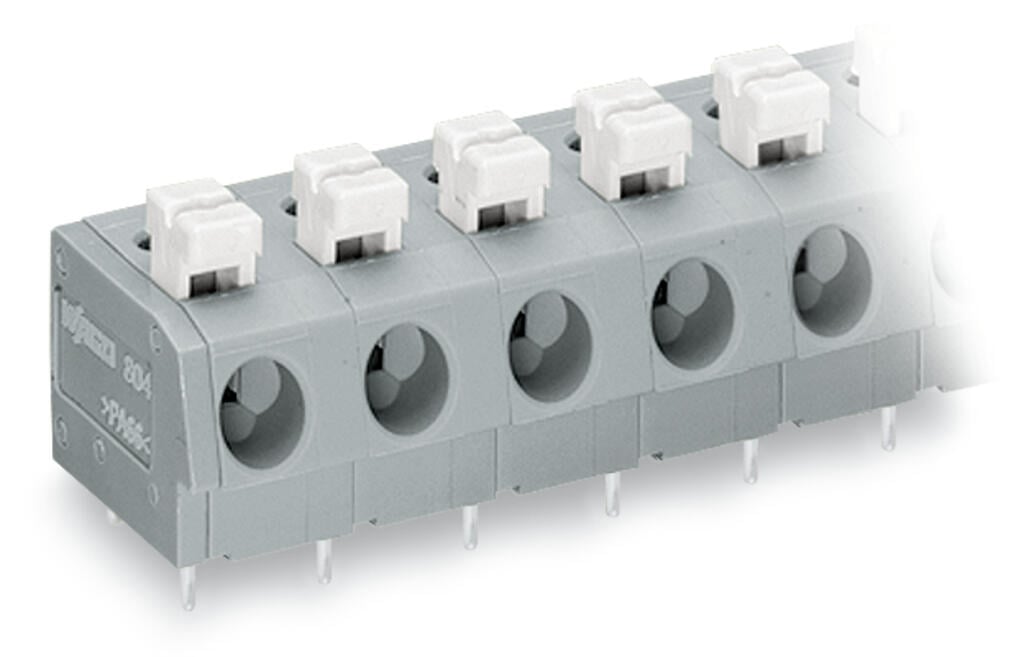

Introducing the 804-307 PCB Terminal Block, a reliable and efficient solution for your connectivity needs. This series 804 terminal block features a durable nylon housing in a sleek gray color, suitable for through hole mounting with a convenient push-in termination method. Constructed with electrolytic copper contacts plated with tin, it ensures excellent conductivity and corrosion resistance. With a 7.5mm pitch and 7 poles on 1 level, it offers ample space for secure wire connections ranging from 20 to 12 AWG. UL 94V-0 rated for high flammability protection, it guarantees safety in operation. With a high current rating of 24A and voltage rating of 630V, it is perfect for various applications in the industrial, automotive, and telecommunications sectors. Trust in the 804307 for dependable performance and longevity in your projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 804-307 |
| Other Names: | 51131973 |
