805-355

WAG805-355
Heilind Number:WAG805-355
Manufacturer:WAGO
Manufacturer Number:805-355
ECAD Model:
3D Model

Description:

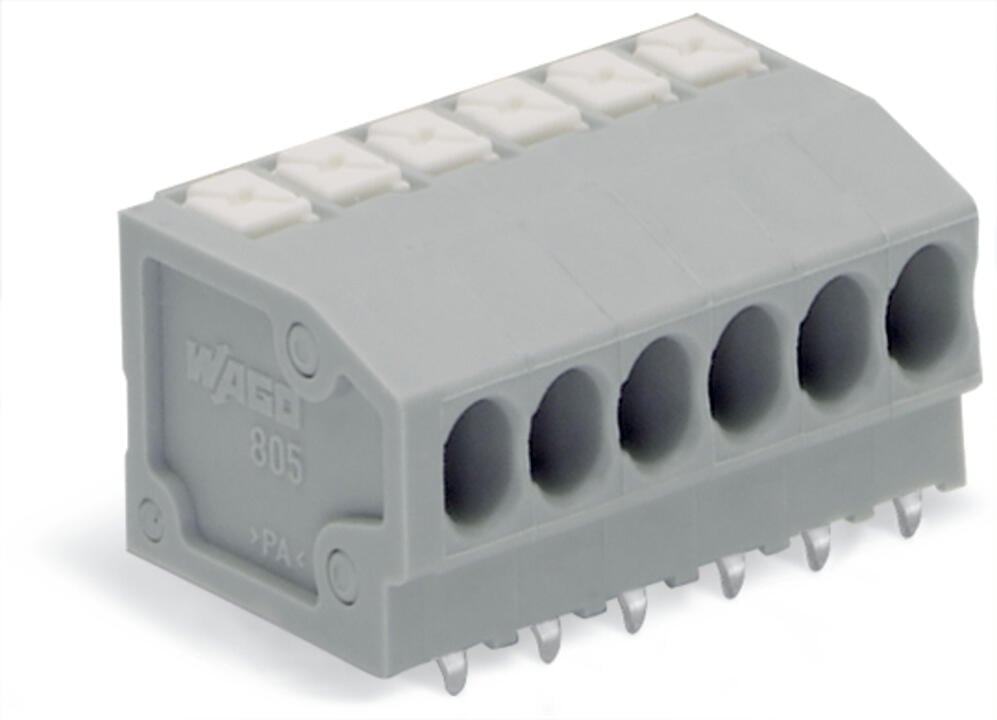

PCB TERMINAL BLOCK

More >>

Specifications

AttributeValue
Product Category:
Terminal Blocks PCB Mount Terminal Blocks
Manufacturer:WAGO
Manufacturer Part Number:WAGO 805-355
Pitch:3.5 mm
Series:805
Wire Size:24 to 16 AWG
Mount Type:Through Hole
Housing Color:Gray
Conductor Size:24 to 16 AWG
Current Rating:17.5 A
Voltage Rating:320 V
Contact Plating:Tin
Number of Poles:5
Contact Material:Electrolytic Copper
Housing Material:Nylon
Number of Levels:1
Termination Method:Push-In
Flammability Rating:UL 94V-0
Mounting Type:Through Hole
Part Aliases:60283525
SKU:WAG805-355

Detailed Description

Introducing the 805-355 PCB Terminal Block, a versatile and reliable connectivity solution for your electronic projects. This terminal block, part of the 805 series, features a durable Nylon housing in a sleek Gray color, ensuring both performance and aesthetics. With a Through Hole mount type and Push-In termination method, installation is a breeze. Its Electrolytic Copper contacts with Tin plating guarantee optimal conductivity, while the UL 94V-0 flammability rating offers peace of mind. With a pitch of 3.5mm and 5 poles in a single level, it accommodates multiple connections with ease. Rated for 17.5A and 320V, it's suitable for a wide range of applications. Compatible with wire sizes ranging from 24 to 16 AWG, this terminal block is a must-have for any project requiring secure and efficient power distribution. Trust in the 805-355 for your connectivity needs.
