| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 816-110 |
| Series: | 816 |
| Housing Material: | Nylon |
| Mount Type: | Through Hole |
| Termination Method: | Push-In |
| Contact Material: | Copper Alloy |
| Contact Plating: | Tin |
| Pitch: | 5 mm |
| Number of Poles: | 10 |
| Number of Levels: | 2 |
| Housing Color: | Gray |
| Wire Size: | 24 to 16 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 14 A |
| Voltage Rating: | 630 V |
| Conductor Size: | 24 to 16 AWG |
| Mounting Type: | Through Hole |
| Part Aliases: | 8160110 |
| SKU: | WAG816-110 |

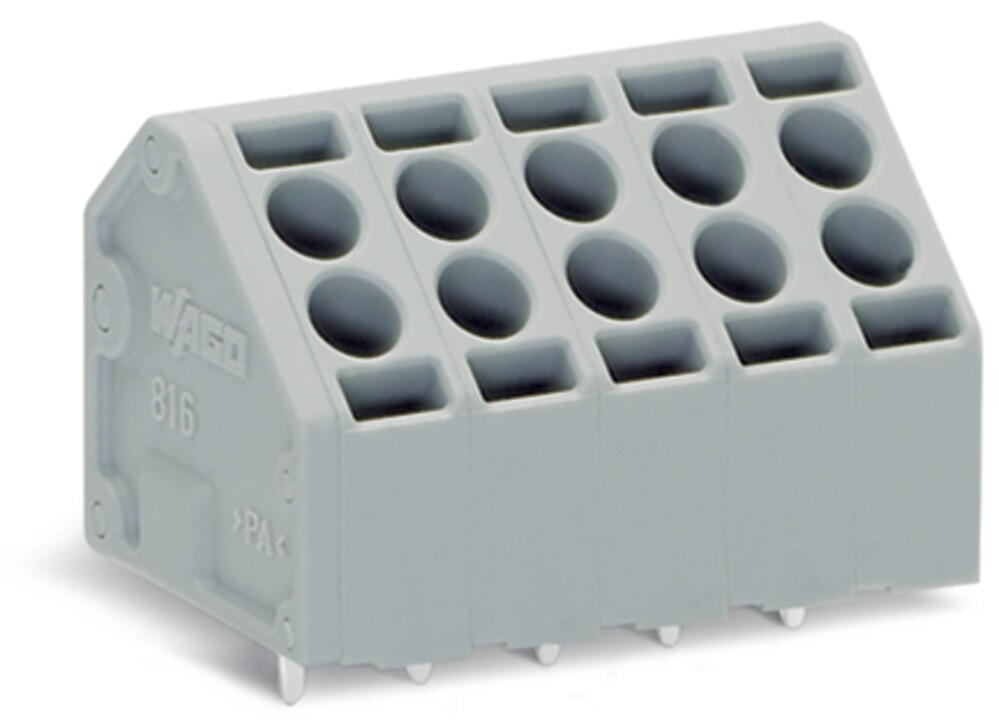

816-110
| Heilind Number: | WAG816-110 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 816-110 |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 816-110, a high-quality PCB mount terminal block designed for reliable and efficient electrical connections. This terminal block, part of the 816 series, features a durable nylon housing in a sleek gray color, ensuring long-lasting performance. With a through-hole mount type and push-in termination method, installation is quick and easy. The contact material is made of copper alloy with tin plating, guaranteeing excellent conductivity. The 816-110 has 10 poles and 2 levels, with a pitch of 5mm, accommodating wire sizes ranging from 24 to 16 AWG. Rated for 14A and 630V, and with a flammability rating of UL 94V-0, this terminal block is suitable for a wide range of applications. Trust in the 816-110 for secure and efficient wire connections in your projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 816-110 |
| Other Names: | 8160110 |
