816-111

WAG816-111
Heilind Number:WAG816-111
Manufacturer:WAGO
Manufacturer Number:816-111
ECAD Model:
3D Model

Description:

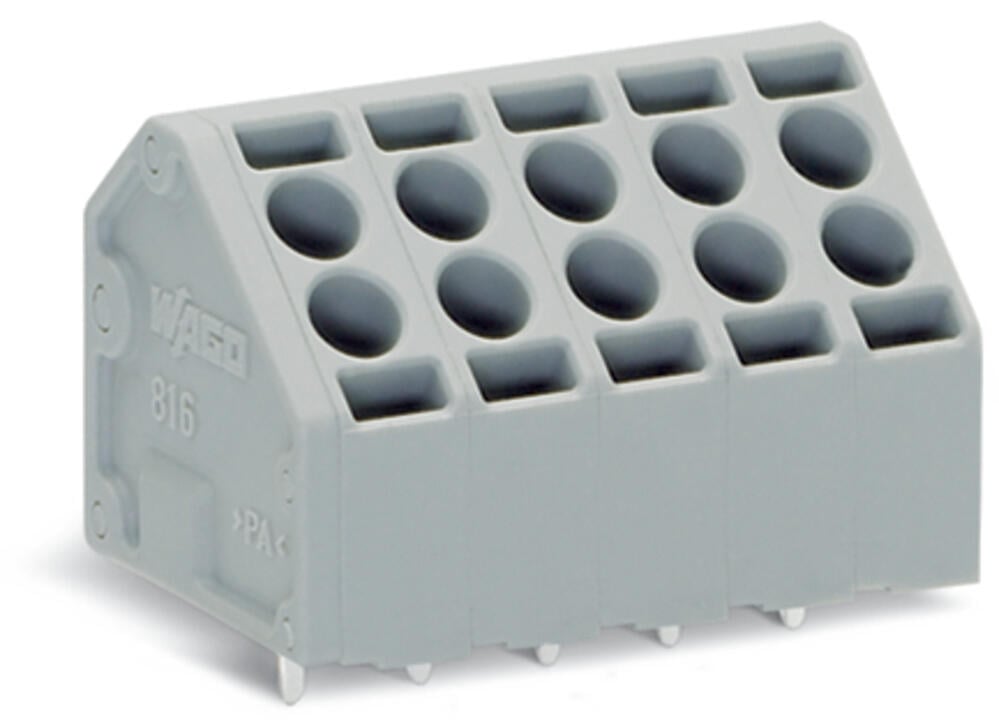

2-CONDUCTOR PCB TERMINAL BLOCK

More >>

Specifications

AttributeValue
Product Category:
Terminal Blocks PCB Mount Terminal Blocks
Manufacturer:WAGO
Manufacturer Part Number:WAGO 816-111
Pitch:5 mm
Series:816
Wire Size:24 to 16 AWG
Mount Type:Through Hole
Housing Color:Gray
Mounting Type:Through Hole
Conductor Size:24 to 16 AWG
Current Rating:14 A
Voltage Rating:630 V
Contact Plating:Tin
Number of Poles:11
Contact Material:Copper Alloy
Housing Material:Nylon
Number of Levels:2
Termination Method:Push-In
Flammability Rating:UL 94V-0
Part Aliases:8160111
SKU:WAG816-111

Detailed Description

Introducing the 816-111 Terminal Block, a reliable and high-performance connectivity solution designed for a variety of applications. This terminal block, part of the 816 series, features a durable Nylon housing in a sleek Gray color, ensuring longevity and versatility. With a Through Hole mount type and Push-In termination method, installation is quick and easy. The 11 poles and 2 levels allow for efficient organization of connections, while the Tin-plated Copper Alloy contacts guarantee optimal conductivity. Rated for 14A and 630V, this terminal block is suitable for a wide range of power and signal applications. Its UL 94V-0 flammability rating provides added safety, making it ideal for use in demanding environments. Compatible with wire sizes ranging from 24 to 16 AWG, it offers flexibility in wiring configurations. Trust the 816-111 Terminal Block for seamless and secure connections in your projects.
