3M™ Wire-to-Board System, 451/452 Series Connector

Reliable connections with more board space.

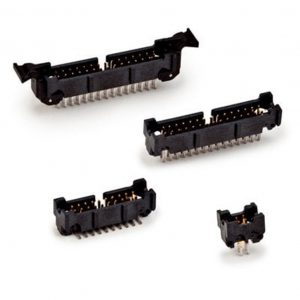

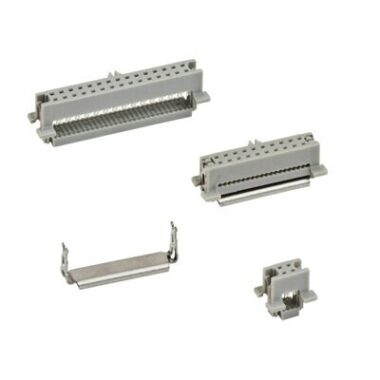

When PCB real estate is at a premium, use 3M socket 451 and 3M header 452 series together along with offerings from the 3M cable portfolio to save space in wire-to-board designs.

With electronics becoming more and more complex, a single printed circuit board is being designed to perform an increasing number of functions and operations. With high-density PCB designs fitting more components onto a board than ever before, PCB real estate is at a premium. 3M socket 451 and 3M header 452 series, used together, can help solve this problem almost anywhere signal-based control is a requirement.

• 0.050″ pitch wire-to-board system at half the size of a standard 0.100″ pitch
• Enables design flexibility in wire-to-board and PLC controllers, especially for small devices.
• Uses proven reliable insulation displacement contact (IDC) technology
